Industrial Gigabit Boost PoE+ Switch 5-Port, 12V-24V DC Input, 120W Power Budget, IP40 DIN-Rail Unmanaged Step-Up Switch

Side view of a 5-port industrial Boost PoE switch being mounted onto a standard DIN rail, showcasing the metal enclosure and top-located ports.

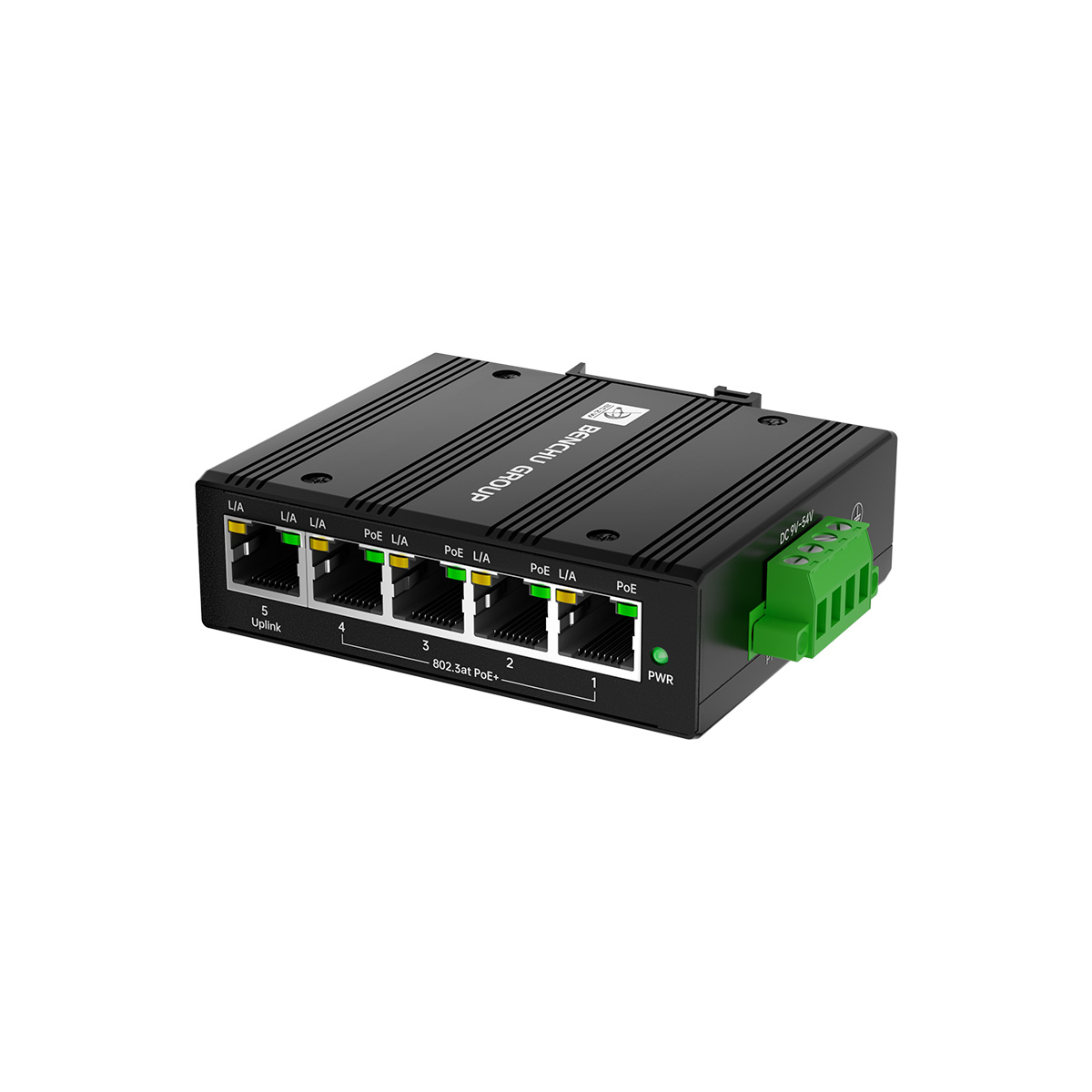

Right-side view of a 5-port industrial Boost PoE switch, highlighting the green power terminal block which supports dual redundant power inputs for enhanced system reliability.
Left side profile of a 5-port industrial Boost PoE switch, featuring a fanless aluminum enclosure with an IP40 rating, designed for silent and dust-resistant operation.

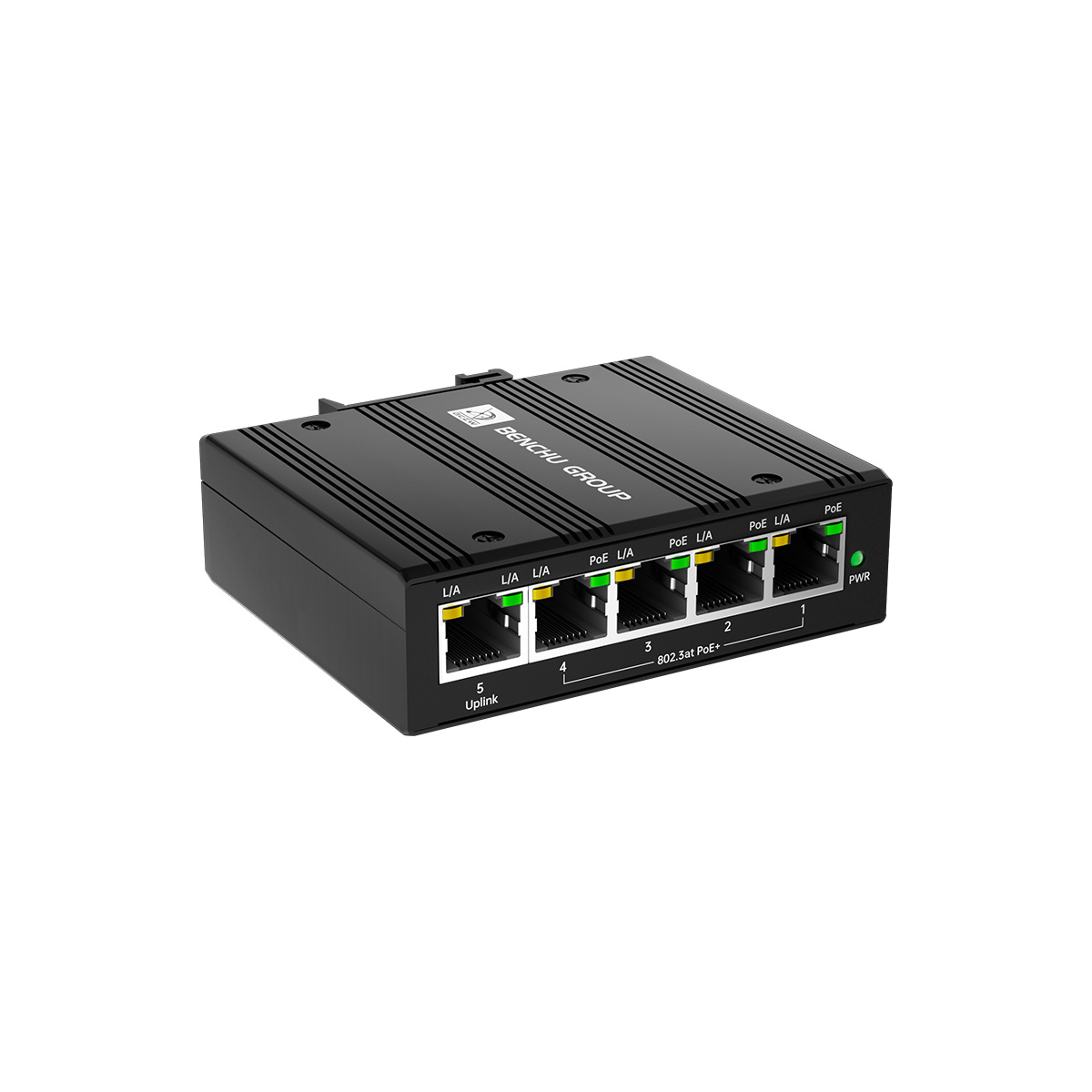

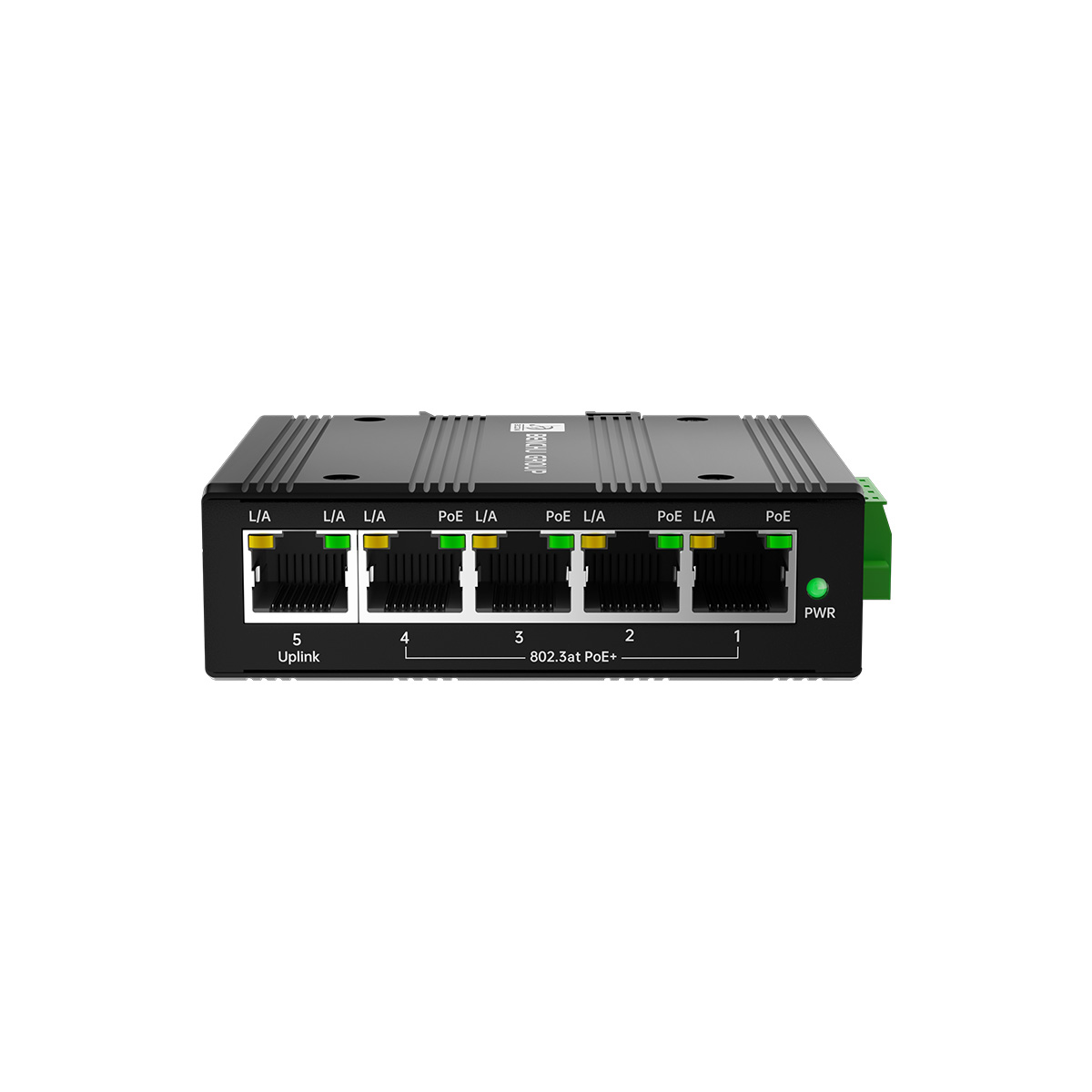

Front view of a fanless 5-port industrial Boost PoE switch with an IP40 aluminum housing, clearly showing the port arrangement, power input, and LED status indicators.

Industrial Gigabit Boost PoE+ Switch 5-Port, 12V-24V DC Input, 120W Power Budget, IP40 DIN-Rail Unmanaged Step-Up Switch

استعلام

This rugged gigabit switch boots 12V/24V DC input up to 48V to deliver 120W PoE+ power, making it the perfect plug-and-play solution for solar and vehicle surveillance.

Product Highlights
    • 12V/24V Voltage Booster: Directly converts low-voltage DC inputs into standard 48V PoE+ power.
    • Massive 120W Budget: Supplies up to 30W per port for four heavy-duty PoE devices simultaneously.
    • Full Gigabit Speed: Ensures zero-latency high-definition video streaming on all five network ports.
    • Extreme Temperature Ready: Operates flawlessly in harsh outdoor environments from -40°C to 75°C.
    • 6KV Surge Protection: Built-in industrial-grade safeguards prevent costly damage from sudden lightning strikes.
    • Plug-and-Play DIN-Rail: Compact unmanaged design enables quick cabinet installation without software configuration.

5 port boost PoE switch Obtained certification icon

5-Port Gigabit Industrial Boost PoE Switch (120W)

Rugged 12V/24V to 48V Step-Up PoE Solution for Solar & Transit Integration

Eliminate External Boosters, Reduce System Failure Points

Designed specifically for B2B system integrators and network engineers, this industrial switch eliminates the need for expensive external DC-DC converters. By directly boosting 12V/24V solar batteries or vehicle power into standard 48V PoE+, it significantly reduces your hardware bill of materials (BOM), simplifies cabinet wiring, and minimizes potential points of failure in remote deployments. With a massive 120W power budget and full Gigabit wire-speed forwarding, it provides a stable, zero-latency network backbone for mission-critical industrial applications.

Target Application Scenarios

This hardened step-up switch is the standard choice for professional engineering projects and industrial IoT environments:

Off-Grid Solar CCTV Systems

Connects directly to 12V/24V solar battery banks to power remote outdoor high-power IP cameras without additional step-up hardware.

Bus & Transit Surveillance

Utilizes 12V/24V on-board vehicle transit power in buses, trucks, or trains to reliably deploy mobile NVR systems and PoE security cameras.

Factory Automation Cabinets

Fits perfectly into standard 24V DC industrial control cabinets to seamlessly bridge PLCs, HMIs, sensors, and wireless IoT gateways.

Smart City ITS Deployments

Ideal for Intelligent Transportation Systems (ITS) roadside electronic enclosures, operating flawlessly under extreme field voltage fluctuations.

Key Product Features & Capabilities

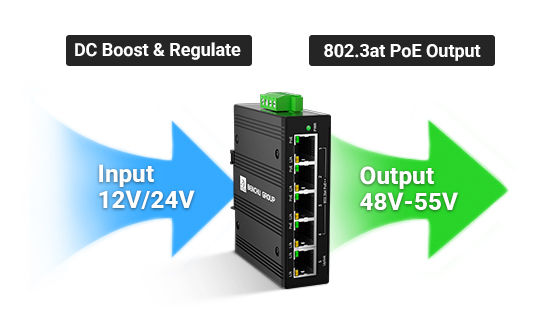

12V/24V to 48V Voltage Booster

12V/24V Voltage Booster

Integrated step-up module converts low-voltage DC input into stable IEEE 802.3at 48V PoE output directly.

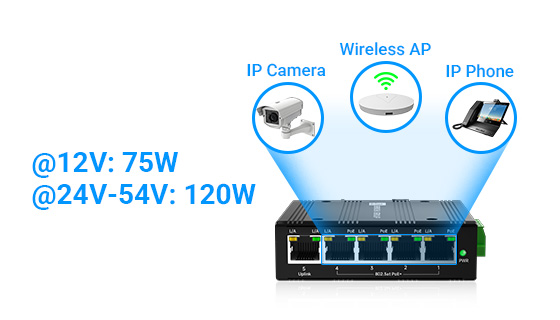

120W High Power Budget

120W High Power Budget

Supplies a massive 120W total power budget, delivering full 30W PoE+ on all 4 network ports simultaneously.

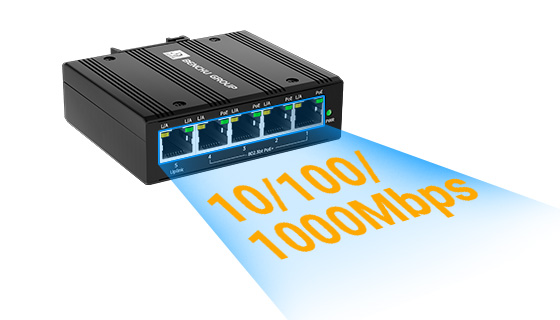

Full Gigabit Wire-Speed

Full Gigabit Speed

Features 5 full-gigabit ports ensuring zero-latency, high-bandwidth data transmission for HD IP surveillance.

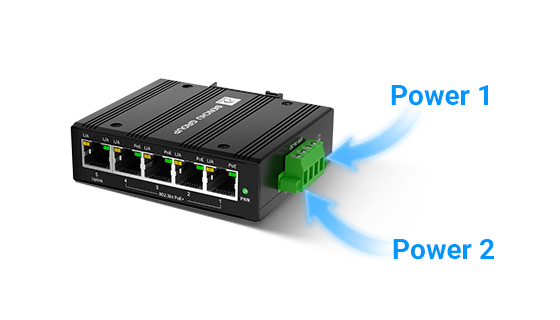

Dual Power Redundancy

Dual Power Redundancy

Supports dual DC power inputs for seamless failover protection, ensuring zero downtime for critical networks.

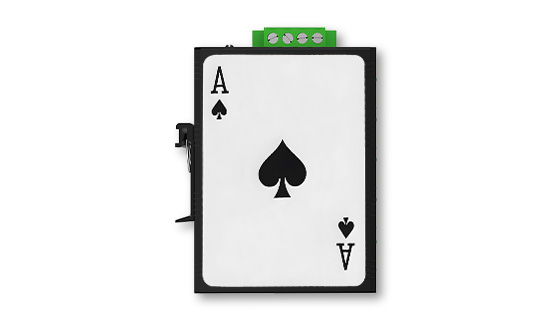

Ultra-Compact Pocket Size

Ultra-Compact Size

Slightly larger than a deck of playing cards, saving valuable space in crowded outdoor enclosures and cabinets.

Extreme Temperature Hardened

-40°C to 75°C Hardened

Industrial-grade fanless components endure extreme heat and sub-zero freezing climates flawlessly.

6KV Surge Protection

6KV Surge Protection

Built-in 6KV common mode surge protection shields network backbones against outdoor lightning spikes.

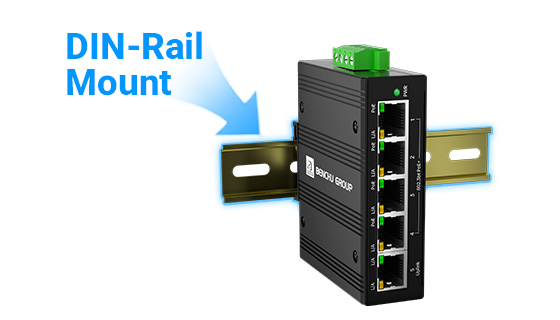

DIN-Rail Plug & Play

DIN-Rail Plug & Play

Standard 35mm DIN-rail mount design requires zero software configuration, ensuring quick deployment.

Industrial Connectivity Solutions



How to integrate the boost PoE switch into your low-voltage networks.

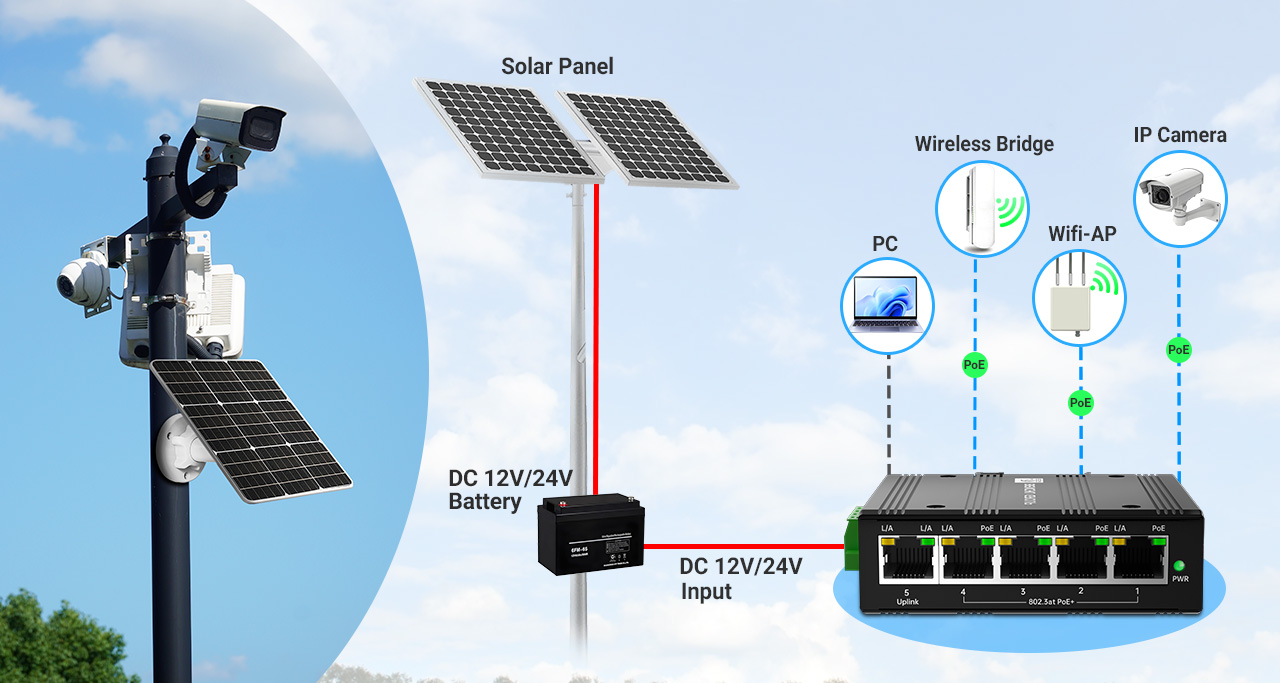

5-Port Gigabit Industrial Boost PoE Switch Connection Diagram Topology

Seamless Deployment in 3 Core Networks

  • 1. Solar-Powered Off-Grid Security Connect the dual DC inputs directly to a 12V/24V solar battery bank. The built-in booster steps up power to run up to 4 high-power outdoor IP cameras or wireless bridges with up to 75W/120W budget.
  • 2. Vehicle Fleet Transit Surveillance Hook up to the 12V or 24V mobile battery of buses, trucks, or trains. The rugged, pocket-sized switch fits tight enclosures to power mobile NVRs, interior dome cameras, and routing gateways seamlessly.
  • 3. 24V DC Factory Automation & ITS Mount directly onto standard 35mm DIN-rails inside standard industrial 24V cabinets. Provide a non-blocking Gigabit backbone for PLCs, HMIs, and heavy industrial IoT sensors.

Specification

Technical Specifications Details / Parameters
Product Model IES7211-5PGE1GE-BOS (5-Port Gigabit Bost PoE Switch)
Interface 4*10/100/1000M PoE Ports + 1*10/100/1000M RJ45 Uplink
Power Input / Booster DC 9V - 54V Wide Voltage Input ; Integrated Power Booster (Steps up to 48V-54V PoE)
PoE Output Integrated 48V~54V Boost; 4*Gigabit PoE++ (802.3af/at/bt)
Max PoE Budget 12V Input (Max 75W); 24V~54V input (Max 120W) (Depends on Input Power)
Power Input Redundancy Dual DC Inputs via Industrial Terminal Block (Failover Protection)
Enclosure & Form Factor Rugged IP40 Aluminum Alloy; Fanless Design; Ultra-Compact Pocket Size
Working Temp -40°C to +75°C (Industrial Grade)
Protection 6KV Surge Protection; ESD 15KV
Mounting DIN-Rail / Wall-mount (Compact Size)

  • نوع العمل :

    Industrial

  • باندريدث :

    1G

  • المزيد من الفلاتر :

    Unmanaged

Frequently Asked Questions (FAQ)


Q1: What is the maximum PoE power budget at 12V DC input?▼
At 12V DC input, the boost 12v poe switch safely delivers a maximum PoE budget of 75W. This safely protects internal step-up circuits from low-voltage overcurrent damage.
Q2: Can this switch output full 120W budget with 24V DC input?▼
Yes, absolutely. It's a 24V to 48V PoE Switch, With a 24V DC input, the integrated voltage booster provides a full 120W budget, allowing all 4 PoE ports to run at full 30W PoE+ simultaneously.
Q3: Will the switch cause latency for high-definition 4K cameras?▼
No. It features full Gigabit wire-speed forwarding on all 5 ports. The non-blocking backbone ensures zero-latency and jitter-free video streams for high-bandwidth devices.
Q4: The switch aluminum housing feels hot. Is this normal?▼
Yes, it is completely normal. Internal heat is conducted via high-grade thermal pads directly to the aluminum casing, which acts as a giant heatsink to dissipate heat into the air.
Q5: Will this casing heat affect the switch performance over time?▼
Not at all. The switch uses premium components rated for an extreme industrial operating range of -40°C to 85°C. Shell warmth does not compromise hardware stability or life span.
Q6: How does Dual Power Redundancy prevent network downtime?▼
If your primary DC input drops, the terminal block seamlessly fails over to the secondary backup power source instantly. This ensures zero packet loss and zero network interruption.

Resource Download Center



Get the complete technical documents and dimension drawings for your project planning.


PDF



Product Datasheet (PDF)

Includes detailed hardware specifications, structural dimensions, environmental standards, and compliance certifications.

📥 Download Datasheet

Industrial Boost PoE Switch Selection Guide



Compare technical features across our premium 9V-54V step-up PoE series to find the exact model for your infrastructure.

Model Name IES7211-5PGE1GE-BOS
5-Port RJ45 Edition		 IES7211-4PGE1GF-BOS
5-Port SFP Edition		 IES7511-4PGE2GF-BOS
6-Port Dual SFP Ring (L2 Managed)		 IES7511-8PGE2GF-BOS
10-Port Dual SFP Ring (L2 Managed)
Product Image
PoE Downlink 4 x 10/100/1000M PoE+ 4 x 10/100/1000M PoE+ 4 x 10/100/1000M PoE+ 8 x 10/100/1000M PoE+
Uplink Ports 1 x 10/100/1000M RJ45 1 x 10/100/1000M SFP Slot 2 x 1.25G RJ45 2 x 1.25G SFP Slots
Fiber Ring ❌ Not Supported Point-to-Point Only ✔ Supported (Fiber Loop) ✔ Supported (Fiber Loop)
Voltage Input DC 9V - 54V Wide Input DC 9V - 54V Wide Input DC 9V - 54V Wide Input DC 9V - 54V Wide Input
Max PoE Budget @12V: 75W
@24V-54V: 120W		 @12V: 75W
@24V-54V: 120W		 @12V: 75W
@24V-54V: 120W		 @12V: 75W; @24V: 140W
@48V-54V: 240W
Ideal Applications
• Small Solar Battery Hubs • In-Vehicle Mobile CCTV
• Off-Grid Solar CCTV Nodes • Long-Distance Transit Fiber
• Multi-Camera Transit Hubs • Heavy Factory Floor Grids
• Smart City ITS Fiber Loops • Long-Distance Pipeline CCTV
Details Page Learn More → Learn More → Learn More → Learn More →
