8 Port Gigabit Unmanaged PoE Switch 2 Gigabit RJ45 Uplinks, SP5200-8PGE2GE

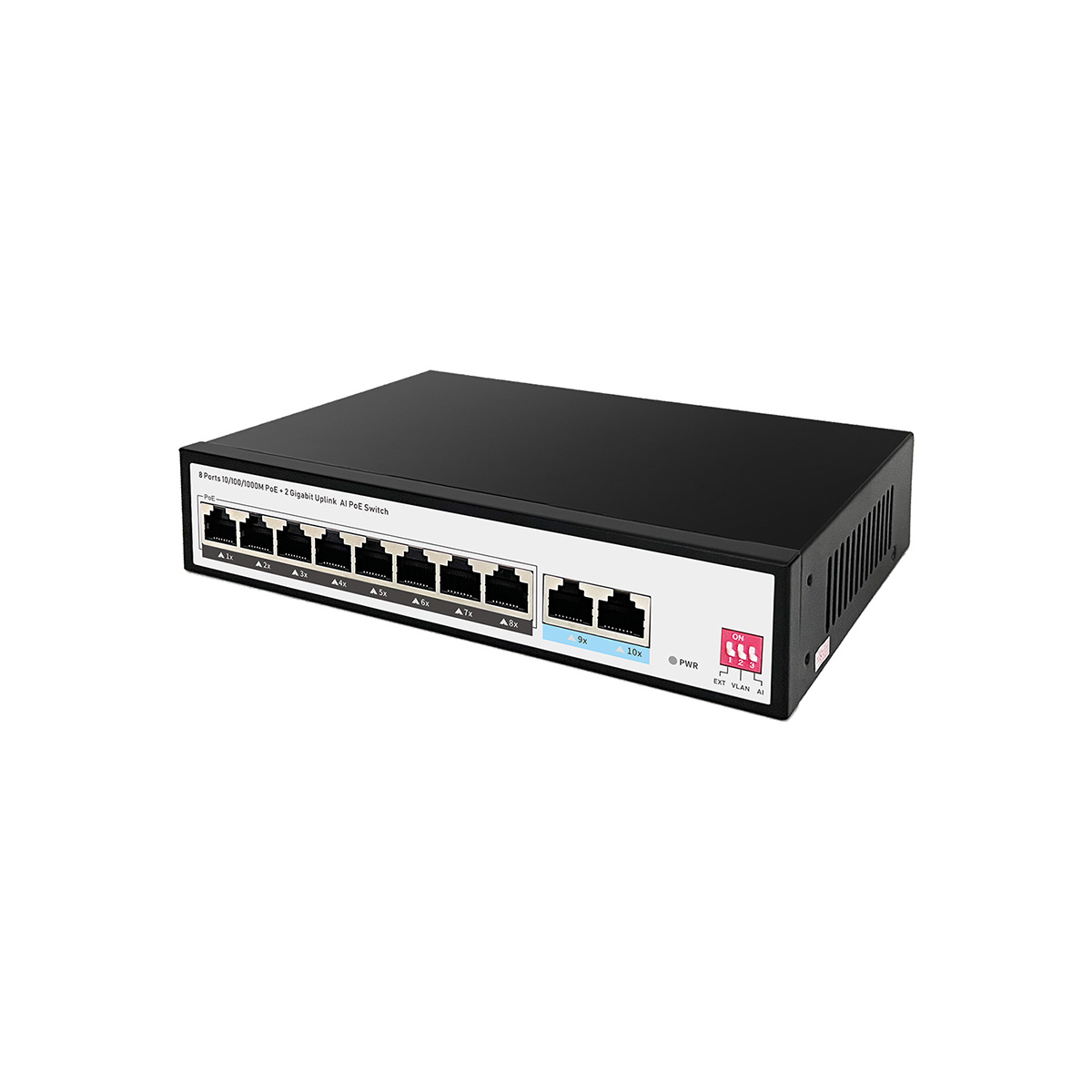

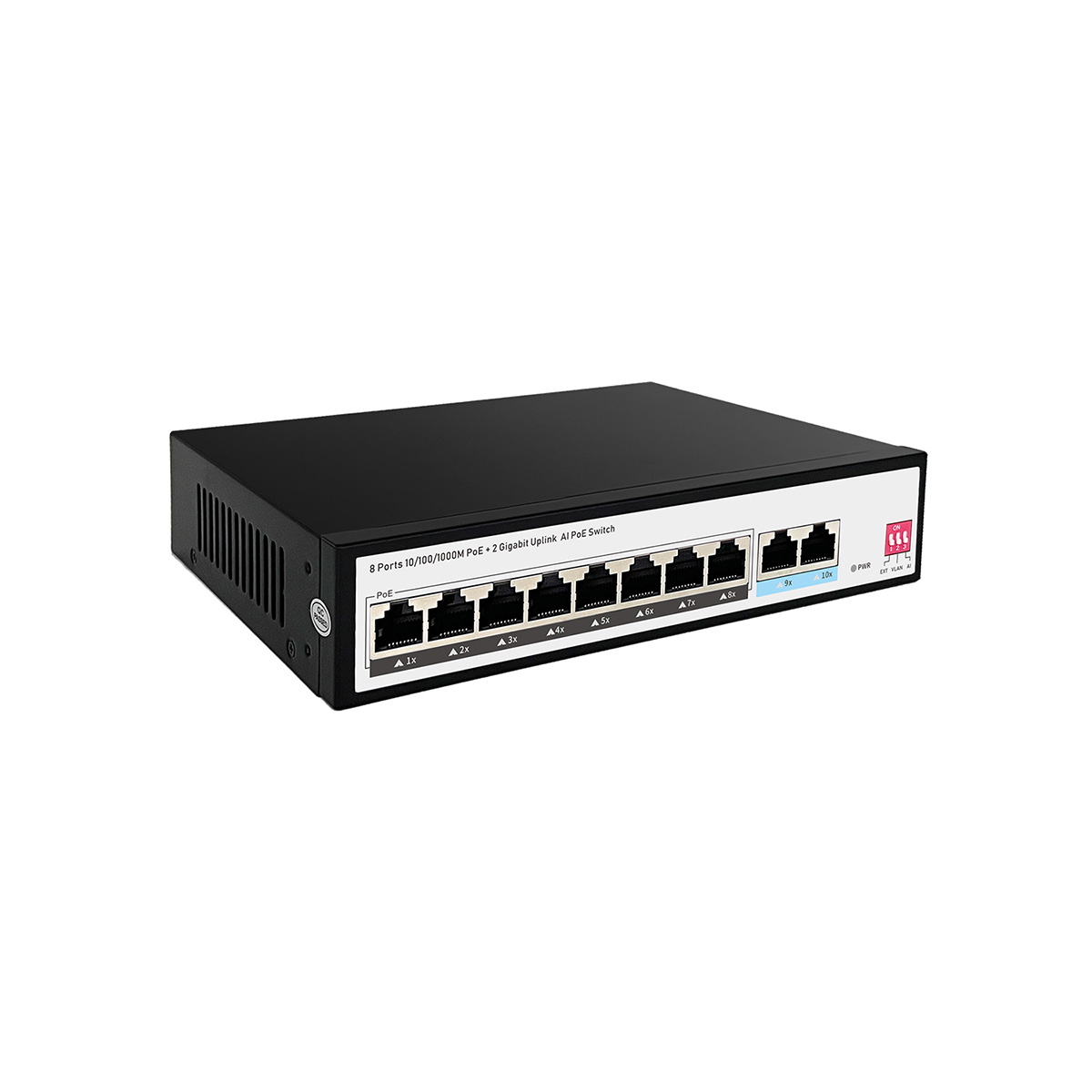

Front view of an 8-port Gigabit PoE switch with 2 Gigabit uplink interfaces

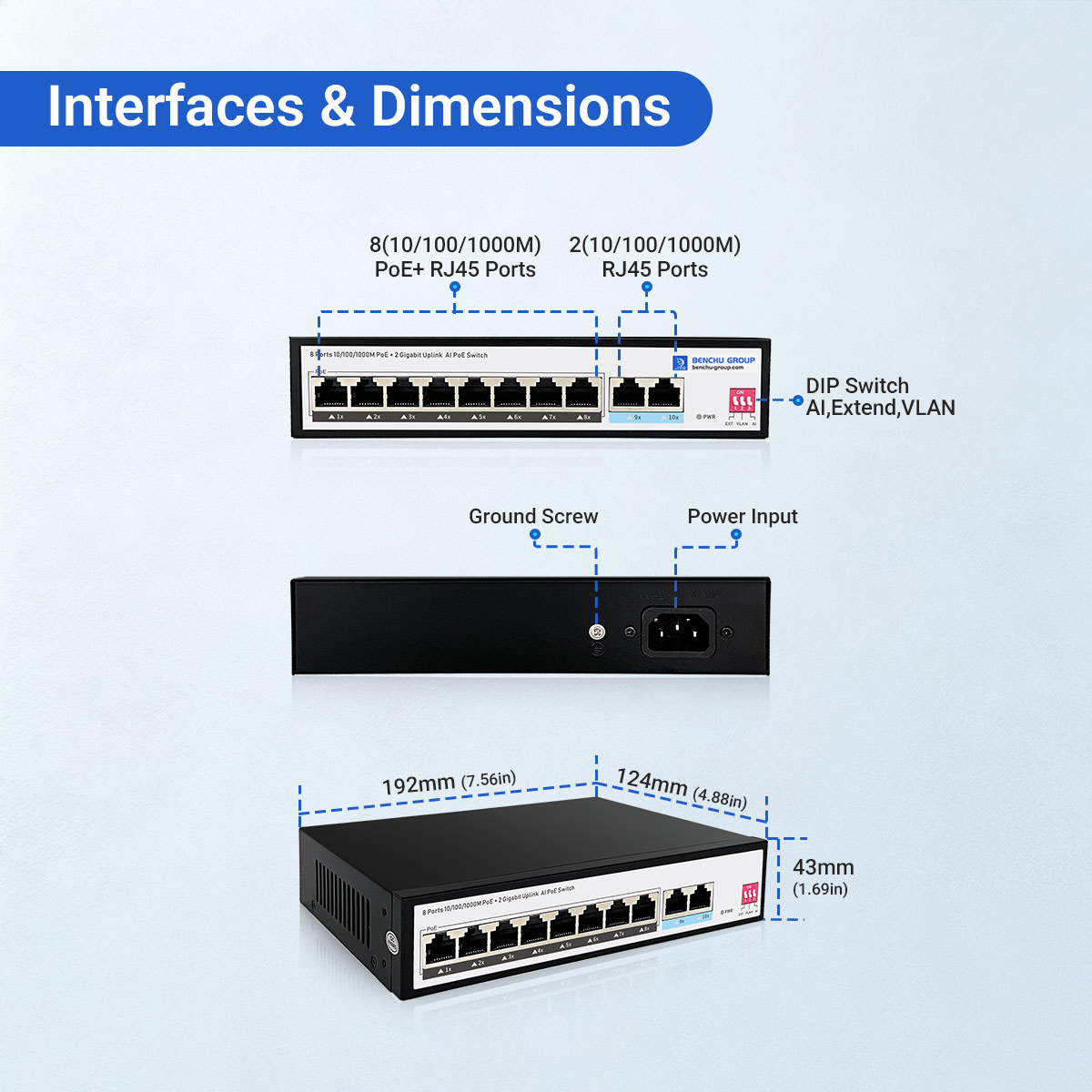

Dimensions of an 8-port Gigabit PoE switch with 2 Gigabit uplink interfaces
8-port Gigabit PoE switch with 2 Gigabit uplinks and AI PoE Watchdog for automatic device recovery

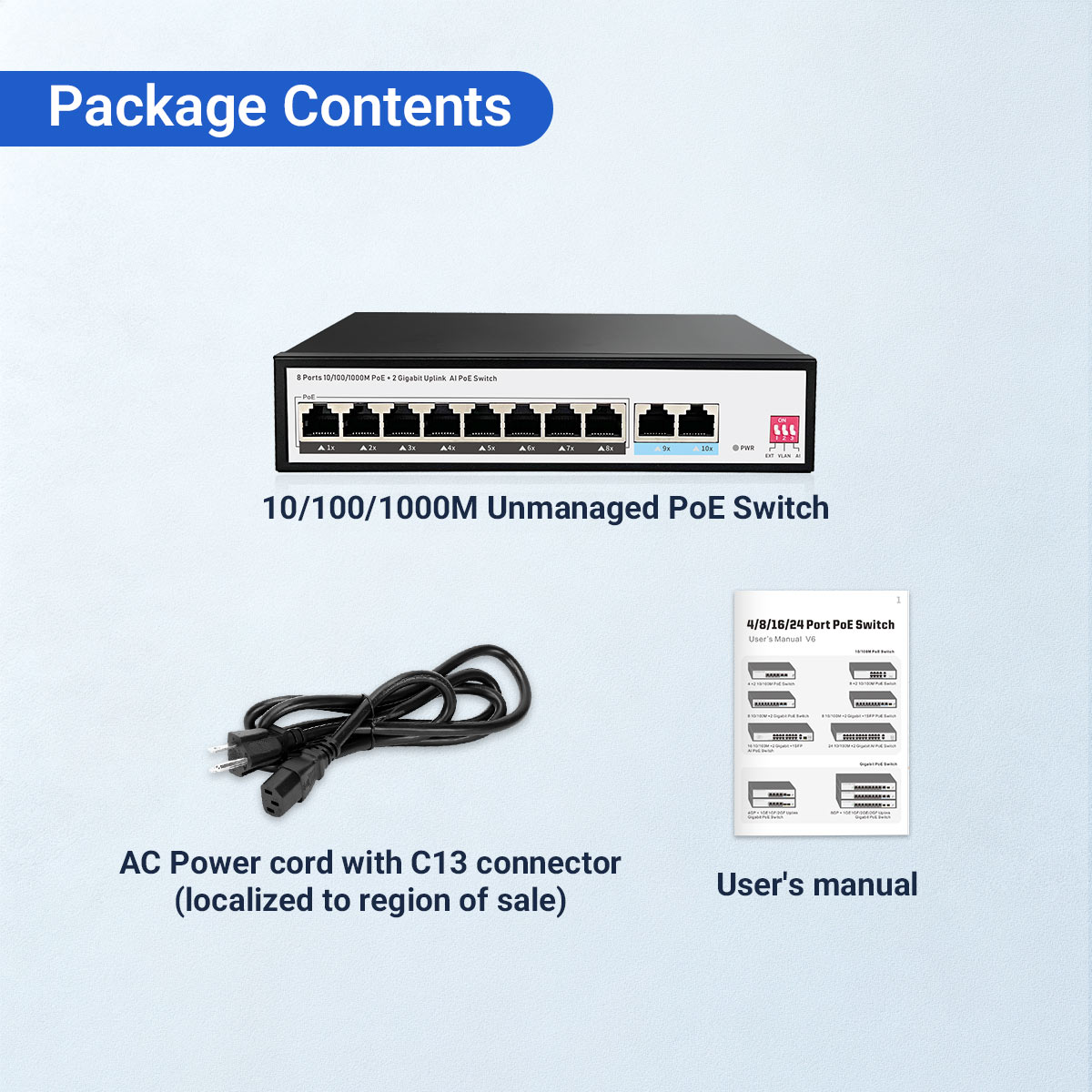

Package contents of an 8-port Gigabit PoE switch with 2 Gigabit uplinks
Left-side view of an 8-port Gigabit PoE switch with 2 Gigabit uplinks
Right-side view of an 8-port Gigabit PoE switch with 2 Gigabit uplinks

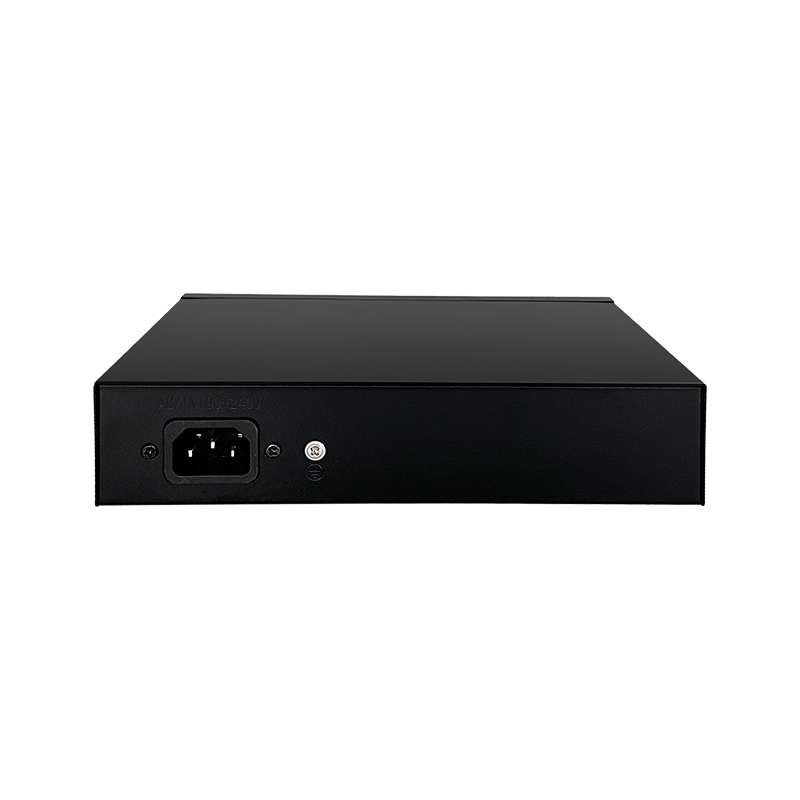

Back view of an 8-port Gigabit PoE switch with 2 Gigabit uplinks

8 Port Gigabit Unmanaged PoE Switch 2 Gigabit RJ45 Uplinks, SP5200-8PGE2GE

Get Editable Specs & Price List →

Designed for Gigabit PoE networks that rely on copper connectivity, this 8 Port Gigabit Unmanaged PoE Switch combines 8 Gigabit PoE ports with 2 dedicated Gigabit RJ45 uplinks. It is a practical choice for installations requiring straightforward, high-speed Ethernet connections.

Product Highlights

    8 Gigabit PoE Ports with 2 Gigabit RJ45 Uplinks — Provides Gigabit PoE connectivity for IP cameras, wireless APs, VoIP phones, and other powered devices, with two dedicated Gigabit RJ45 uplinks for reliable high-speed connections to NVRs, routers, or upstream switches.

    4-Mode DIP Switch for Flexible Deployment — A convenient hardware DIP switch provides four selectable operating modes for different network requirements, including VLAN Isolation, 250m PoE Extend, AI PoE Watchdog, and Standard Operation. Installers can select the required function directly at the switch without software configuration.

    VLAN Isolation for Safer PoE Networks — The hardware-based VLAN isolation mode separates connected PoE devices from each other, helping reduce unnecessary inter-port traffic and improve network security in surveillance and other multi-device deployments.

    250m PoE Extend & AI Watchdog for Remote Reliability — The 250m Extend mode enables long-distance PoE transmission, while AI PoE Watchdog monitors connected powered devices and automatically restarts unresponsive devices to help maintain stable network operation.

    4kV Surge Protection & Wide Temperature Operation — Built-in 4kV surge protection and a -20°C to +55°C operating temperature range provide added reliability for demanding installation environments, including security and commercial networking applications.

    Plug-and-Play Unmanaged Design for Fast Deployment — No complex software configuration is required, allowing integrators to deploy the switch quickly and simplify installation. The practical hardware-based feature design also provides a strong platform for OEM/ODM product customization and branding.

8 port gigabit Unmanaged PoE Switch authentication

8-Port Full Gigabit PoE+ Switch with Dual RJ45 Uplinks | 8-Port 802.3af/at 120W High-Power Unmanaged Ethernet Switch

Lossless Gigabit Backhaul Transmission — Plug-and-Play Edge Access for HD Surveillance and Enterprise Wi-Fi

The 8-Port Full Gigabit PoE Switch with Dual RJ45 Uplinks provides a robust, enterprise-grade networking solution designed for high-definition IP video surveillance, wireless coverage, and IoT device integration. Featuring 8× Gigabit IEEE 802.3af/at PoE+ ports and 2× dedicated Gigabit RJ45 uplink ports, it delivers up to 30W of power per port within a total 120W PoE budget. The dual Gigabit uplink architecture ensures non-blocking, high-bandwidth data transmission to core switches or NVR storage systems without cascading bottlenecks. Engineered in a heavy-duty steel enclosure with built-in 4kV surge protection and hardware DIP-switch controls (supporting 250m Extend mode and Port Isolation), this plug-and-play PoE switch delivers zero-latency performance and long-term reliability for commercial integration and engineering projects.

Target Application Scenarios

Ideal for edge networking and power delivery in high-density commercial, industrial, and security environments:

4K IP Video Surveillance Systems

Powers up to 8 high-definition 4K IP cameras, PTZ domes, and thermal cameras simultaneously, using dual Gigabit copper uplinks to stream clear, stutter-free video directly to NVRs and monitoring servers.

Enterprise Wi-Fi 6 Access Points

Delivers stable 30W PoE+ power per port to modern high-power Wi-Fi 6 access points across office spaces, hotels, and schools, eliminating local AC wiring and ensuring high-speed internet backhaul.

Smart Campus & Access Control Terminals

Connects and powers VoIP phones, SIP door intercoms, biometric access control panels, and IoT gateways, providing secure port isolation to prevent network broadcast storms.

Key Product Features & Technical Advantages

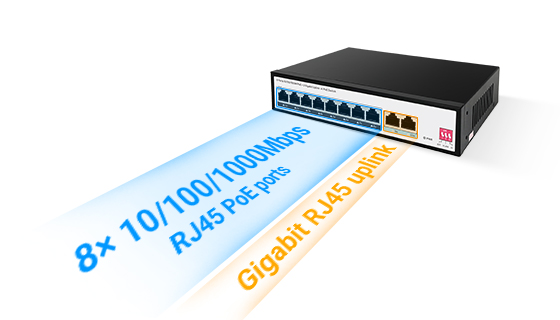

10-port full gigabit ethernet PoE switch featuring 8 PoE ports and dual RJ45 uplink ports for non-blocking high-speed data transmission.

Full Gigabit 10-Port Access

Equipped with 8× 10/100/1000Mbps RJ45 PoE ports and 2× dedicated Gigabit RJ45 uplink ports, delivering full wire-speed non-blocking switching capability for bandwidth-intensive 4K surveillance and Wi-Fi 6 traffic.

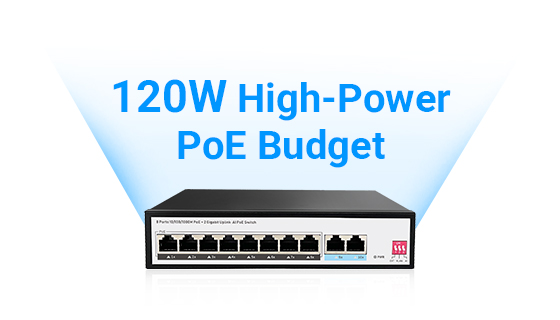

High power 120W internal power supply supporting IEEE 802.3af/at standards with up to 30W output per PoE port.

120W High-Power PoE Budget

Supports IEEE 802.3af/at PoE+ standards with an internal power supply providing up to 120W total power budget (max 30W per port), effortlessly driving power-hungry PTZ cameras, IP speakers, and wireless APs.

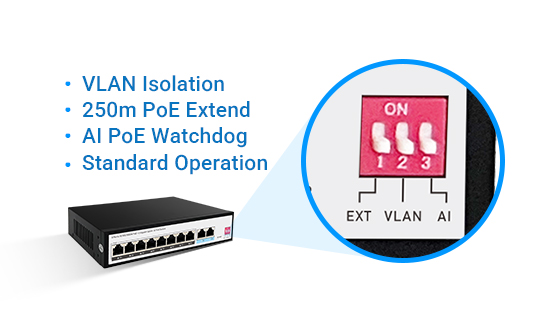

Hardware DIP switch providing 4 working modes: Standard Default, One-key Port Isolation VLAN, 250m Distance Extend, and Smart AI Watchdog.

Versatile 4-Mode DIP Switch

Offers flexible hardware control with 4 distinct working modes: Standard (Default mode), VLAN Isolation (prevents broadcast storms), Extend Mode (250m long distance), and AI Watchdog for unattended maintenance.

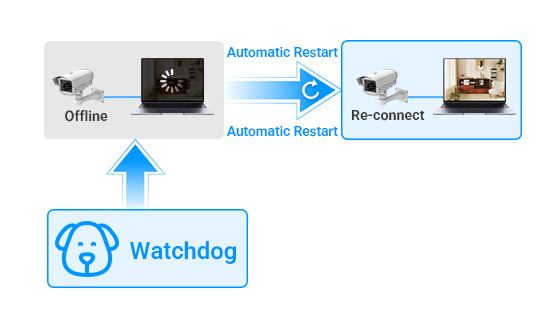

Smart AI PoE Watchdog detecting crashed IP cameras and automatically rebooting offline ports to ensure 24/7 continuous operation.

Smart AI PoE Watchdog

Features intelligent AI Watchdog auto-healing. The switch continuously monitors offline port status and automatically reboots unresponsive or frozen powered devices (PDs), significantly reducing manual field maintenance costs.

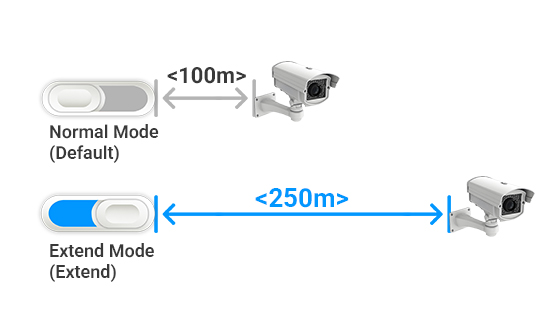

250m long distance PoE transmission mode extending power and 10Mbps data signal over network cables to overcome 100m ethernet limits.

250m Extended Reach Mode

When Extend mode is toggled, PoE ports support long-range power and data transmission up to 250 meters (820ft) at 10Mbps. Perfect for overcoming standard 100m Ethernet distance limits in large perimeter surveillance.

Built-in 4kV lightning surge protection circuit protecting the ethernet switch and connected equipment from power surges and ESD.

4kV Lightning Surge Protection

Integrated industrial-grade surge suppression hardware provides 4kV lightning protection on all RJ45 ports and power supplies, safeguarding the switch and connected devices against severe electrical transients and static ESD.

Commercial and industrial grade PoE switch validated for reliable operation from -20C freezing cold up to +55C high heat environment.

-20°C to +55°C Wide Temperature

Engineered with high-quality industrial components to reliably operate across an extended temperature range of -20°C to +55°C (-4°F to 131°F), making it ideal for outdoor enclosure boxes and unconditioned environments.

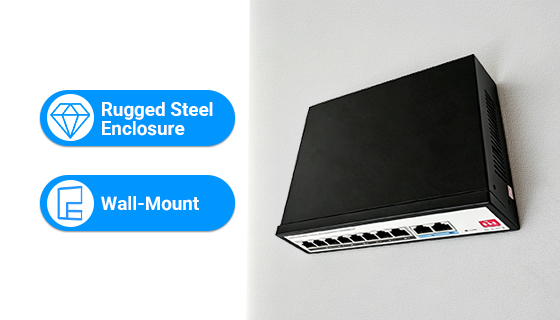

Durable metal housing ethernet switch with integrated wall-mounting brackets for compact and secure field installation.

Rugged Steel Enclosure & Wall Mount

Encased in a heavy-duty metal housing with natural heat dissipation (fanless design). Includes integrated keyhole slots and bracket accessories supporting flexible wall-mount and desktop installations in tight network cabinets.

10-Port Full Gigabit PoE Switch Connectivity & Topology Solutions



Build flexible, high-bandwidth edge networks for HD IP video surveillance, enterprise Wi-Fi 6 APs, and long-distance perimeter security using dual Gigabit uplinks and smart DIP controls.

Network topology diagram showing 10-port gigabit PoE switch powering 8 IP cameras and Wi-Fi APs while connecting to NVR and core switch via dual Gigabit RJ45 uplink ports.

Typical Application Topologies

  • 1. Dual Gigabit Uplink Architecture (NVR + Core Switch Cascading) Leverage 2× dedicated Gigabit RJ45 uplink ports to split local video recording and backbone network traffic. Uplink Port 9 streams zero-latency high-bitrate video directly to a local NVR, while Uplink Port 10 connects to the core enterprise switch or router, eliminating transmission bottlenecks in 4K surveillance systems.
  • 2. Long-Range Perimeter Security (250m Extend Mode + VLAN) By toggling the DIP switch to Extend mode, PoE ports 1–8 extend power and data transmission distances up to 250 meters over Cat5e/6 cables. Combined with VLAN mode, each downlink PoE port is logically isolated from each other to prevent broadcast storms and malicious IP spoofing across long-distance camera runs.
  • 3. Unattended High-Reliability Deployment (AI Watchdog Integration) Ideal for high-altitude ceiling APs, outdoor pole-mounted cameras, and smart entrance turnstiles. When enabled via DIP switch, the AI PoE Watchdog automatically performs hardware health-checks on connected devices. Upon detecting frozen or crashed terminals, it power-cycles the specific PoE port to reboot the device without technician dispatch.

Technical Specifications

Hardware Parameter Details / Specification Limits
Product Model SP5200-8PGE2GE (10-Port Full Gigabit Desktop/Wall-Mount Version)
Equipment Type 8-Port Full Gigabit Unmanaged PoE+ Switch with Dual RJ45 Uplinks
Downstream PoE Ports 8 × 10/100/1000Mbps RJ45 Auto-MDI/MDIX PoE Ports (IEEE 802.3af/at standard)
Uplink Ports 2 × 10/100/1000Mbps Dedicated RJ45 Copper Uplink Ports (Non-PoE, for NVR & Core Switch)
PoE Power Budget 120W Total PoE Power (Up to 30W max per port; IEEE 802.3af/at auto-sensing)
Power Pin Assignment Mode A: Pins 1/2 (+), 3/6 (-) for standard Ethernet power delivery
Hardware DIP Switch Modes 4 Working Modes:
• Default: Standard full gigabit ethernet switch operation
• VLAN: Isolates PoE ports 1–8 from each other; suppresses broadcast storms
• Extend: Extends PoE transmission up to 250m at 10Mbps link speed
• AI Watchdog: Automatically detects frozen PD devices and reboots powered ports
Performance & Switching 20Gbps Switching Capacity, 14.88Mpps Packet Forwarding Rate, 4K MAC Address Table, Store-and-Forward architecture
Surge & ESD Immunity 4kV Lightning Surge Protection on all RJ45 ports and AC input line; 4kV ESD Contact / 8kV Air Protection
Power Supply Input Built-in AC Industrial Power Module: AC 100V–240V, 50/60Hz input
Enclosure & Installation Heavy-Duty Galvanized Steel Housing (Fanless silent cooling); Supports Wall-Mount and Desktop installation
Climatic Operational Limits Operating Temperature: -20°C to +55°C (-4°F to 131°F); Storage: -30°C to +75°C; Humidity: 5%~95% non-condensing
Compliance Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af/at; CE, FCC, RoHS certified

Compare Enterprise 8-Port Gigabit Unmanaged PoE Switch Series



Compare key specifications, PoE power budget, uplink configurations, and hardware DIP functions to select the ideal switch for IP surveillance and AP deployments.

Model
& Key Specs		 8 Port gigabit unmanaged PoE Switch with 2 gigabit rj45 uplink
SP5200-8PGE2GE
8-Port GbE PoE + 2GbE Uplink (120W)
 8 port gigabit poe switch with gigabit rj45 and sfp uplink
SP5210-8PGE2GE1GF
8-Port GbE PoE + 2x GbE + 1x SFP Uplink (Rack-mount)
 8 port 10/100/1000m poe switch with 2 gigabit sfp uplink
SP5210-8PGE2GF
8-Port GbE PoE + 2x SFP Uplink (Rack-mount)
 8 port 802.3bt poe switch with gigabit rj45 and sfp uplink
SP5210-8PGE2GE1GF-4BT
8-Port GbE PoE + 2x GbE + 1x SFP Uplink (BT 90W)
Port Matrix (Downlink / Uplink) 8x 10/100/1000M PoE
+ 2x 1000M RJ45 Uplink		 8x 10/100M PoE
+ 2x 1000M RJ45 + 1000M SFP Slots		 8x 10/100M PoE
+ 2x 1000M SFP Slots		 8x 10/100/1000M PoE
+ 2x 1000M RJ45 + 1000M SFP Slots
PoE Standard & Per-Port Power IEEE 802.3af/at (Max 30W/Port) IEEE 802.3af/at (Max 30W/Port) IEEE 802.3af/at (Max 30W/Port) IEEE 802.3af/at/bt (Max 90W/Port 1-4)
IEEE 802.3af/at (Max 30W/Port 5-8)
Total PoE Power Budget 120W 120W  120W 300W
Hardware DIP Features VLAN Isolation + Extend 250m + PoE Watchdog  VLAN Isolation +  Watchdog VLAN Isolation + Watchdog VLAN Isolation + PoE Watchdog
Switching Capacity / Rate 16 Gbps / 14.88 Mpps 24 Gbps / 16.37 Mpps 24 Gbps / 14.88 Mpps 24 Gbps / 16.37 Mpps
Surge Protection & Housing 4kV Surge / 8kV ESD Metal Case 4kV Surge / 8kV ESD Metal Case 4kV Surge / 8kV ESD Metal Case 4kV Surge / 8kV ESD Heavy Metal
Recommended Deployment Standard HD Security & Enterprise APs Standard HD Security & Enterprise APs Long-Distance Fiber Link & High-Bitrate Surveillance Ultra HD PTZ Cameras, Wi-Fi 6/7 APs & Outdoor Kiosks
Action ← Current Model View Detail → View Detail → View Detail →

Need custom power budget or OEM white-labeling for 8-port Gigabit PoE switches? Our network engineers provide tailored solutions for global brands and projects. Request Custom Engineering Quote →

Frequently Asked Questions (FAQ)



Common Questions About 8-Port Gigabit PoE Switching, Dual Gigabit Uplinks and IP Surveillance Applications

Q1: What is an 8-port Gigabit PoE switch with 2 Gigabit RJ45 uplink ports?

An 8-port Gigabit PoE switch with 2 Gigabit RJ45 uplink ports combines 8 Gigabit PoE ports for powered devices with 2 independent 10/100/1000Mbps Gigabit RJ45 uplink ports for connecting to an NVR, router, core switch, or other network equipment. Each PoE port can provide both Ethernet data and DC power over a single network cable, simplifying the installation of IP cameras, wireless access points, VoIP phones, and other PoE devices.

Q2: Why does an 8-port PoE switch need 2 Gigabit RJ45 uplink ports?

Two Gigabit RJ45 uplink ports provide more flexible and higher-bandwidth upstream connectivity than a single uplink. One uplink can connect the PoE switch to an NVR or core switch, while the second can be used for a router, another network switch, or network expansion. For surveillance systems with multiple IP cameras, dual Gigabit uplinks provide greater flexibility for connecting the access network to different upstream devices.

Q3: How far can an 8-port Gigabit PoE switch transmit power and data?

Under standard Ethernet and PoE conditions, the recommended transmission distance is up to 100 meters (328 feet) between the PoE switch and the powered device when using suitable Ethernet cable. Actual distance depends on cable quality, PoE power consumption, ambient conditions, and the connected device. For installations requiring transmission beyond 100 meters, additional PoE extenders, fiber links, or long-distance PoE technology may be required.

Q4: Can an 8-port Gigabit PoE switch be used for CCTV and IP camera systems?

Yes. An 8-port Gigabit PoE switch is well suited for small and medium-sized IP surveillance systems. The eight PoE ports can directly connect to compatible PoE IP cameras, while the Gigabit RJ45 uplinks can connect the switch to an NVR, router, or core network. Power and data are delivered through the same Ethernet cable, reducing cabling complexity and simplifying the deployment of CCTV and IP camera systems.

Q5: What should I consider when choosing an 8-port Gigabit PoE switch?

Key specifications include the PoE standard, maximum PoE power per port, total PoE power budget, number and speed of uplink ports, switching capacity, transmission distance, installation method, operating temperature, and management functions. For CCTV applications, also consider the number of cameras, camera resolution, average video bitrate, NVR connection, and total power consumption. Selecting the switch according to the actual network and power requirements helps ensure stable and reliable long-term operation.

Resource Download Center



Official datasheet, specifications, port configuration and installation information for the 8-Port Gigabit PoE Switch with 2 Gigabit RJ45 Uplink Ports.


PDF



8-Port Gigabit PoE Switch Technical Datasheet

Complete product specifications for the 8-port Gigabit PoE switch with 2 Gigabit RJ45 uplink ports, including PoE standards, PoE power budget, port configuration, Gigabit Ethernet performance, switching capacity, power supply requirements, transmission distance, dimensions, installation information, and operating conditions. Ideal for IP surveillance, wireless networking, VoIP, and commercial Ethernet applications.

📥 Download Datasheet (PDF)

Related PoE Networking Solutions



Explore complementary PoE solutions for powering non-PoE devices, outdoor deployments, long-distance network expansion, and connecting multiple PoE devices.

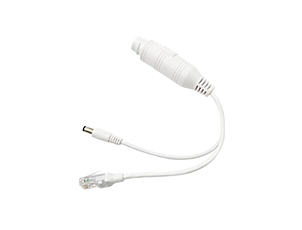

Waterproof PoE Splitter PoE-SP01 for Outdoor PoE Applications

Waterproof PoE Splitter

Model: PoE-SP01

Designed for outdoor PoE deployments, this waterproof splitter separates PoE power and Ethernet data for compatible non-PoE devices in weather-exposed environments.

Ideal for: Outdoor IP Cameras & Weather-Exposed Devices
View Product →

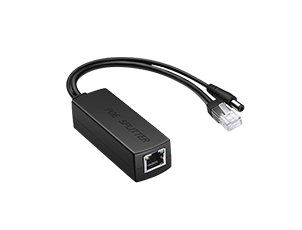

12V 2A PoE Splitter PoE-SP01-AT for Non-PoE Network Devices

12V 2A PoE Splitter

Model: PoE-SP01-AT

Converts PoE input into separate Ethernet data and regulated 12V DC power, providing a convenient way to power compatible non-PoE network devices from a PoE switch.

Ideal for: 12V Network Devices & Access Control
View Product →

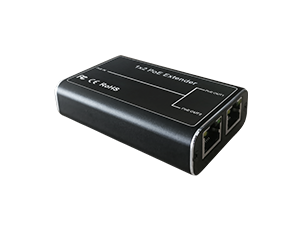

1 to 2 PoE Extender POE-EX02 for PoE Network Expansion

1 to 2 PoE Extender

Model: POE-EX02

Expands one PoE network connection into two downstream PoE connections, helping connect multiple powered devices where standard Ethernet cabling or available PoE ports are limited.

Ideal for: Multi-Device PoE Expansion
View Product →

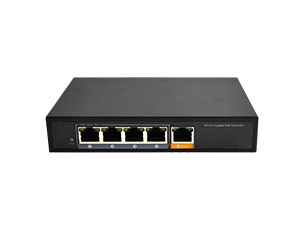

1 to 4 PoE Extender PoE-EX04G-60W for Multiple IP Cameras
