Overview

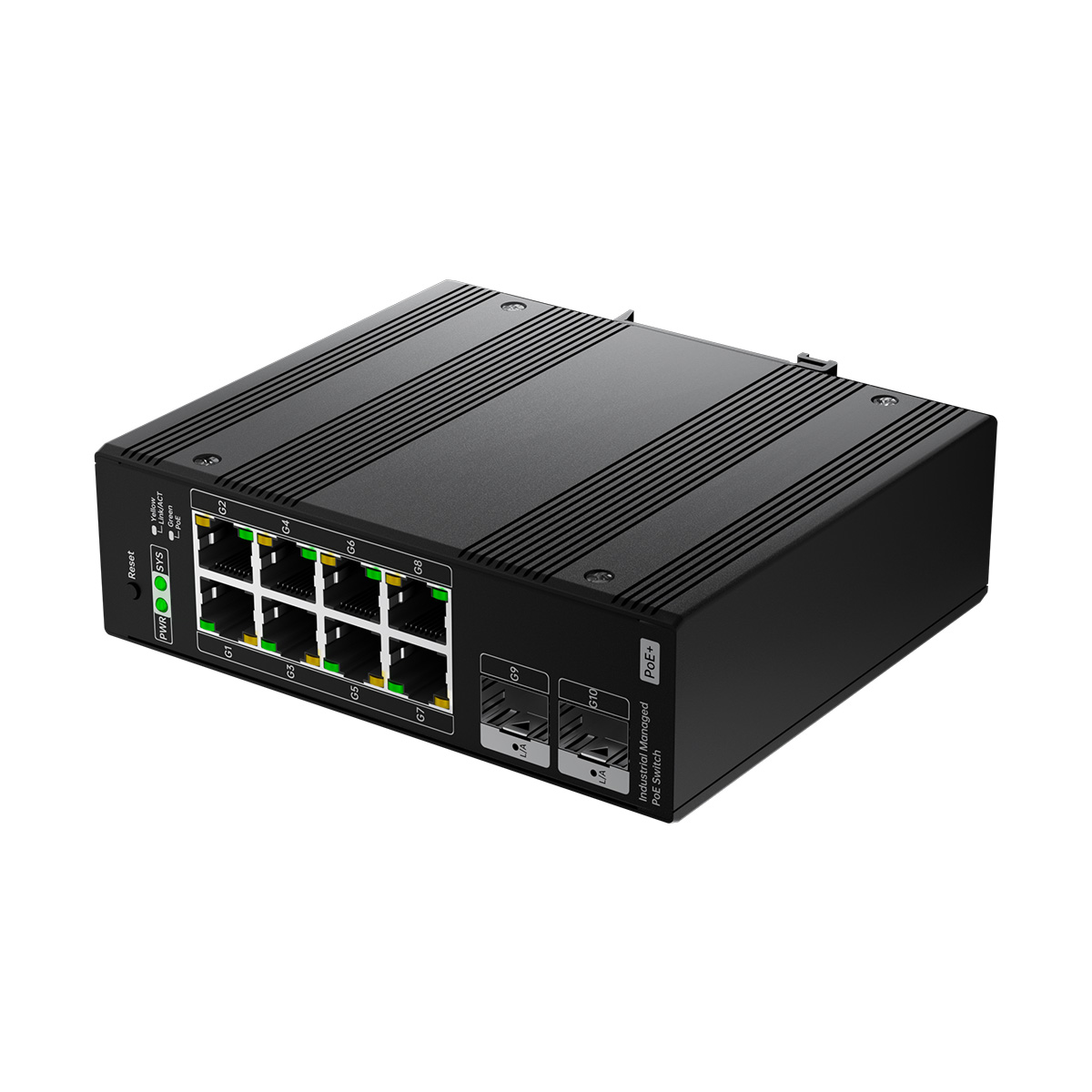

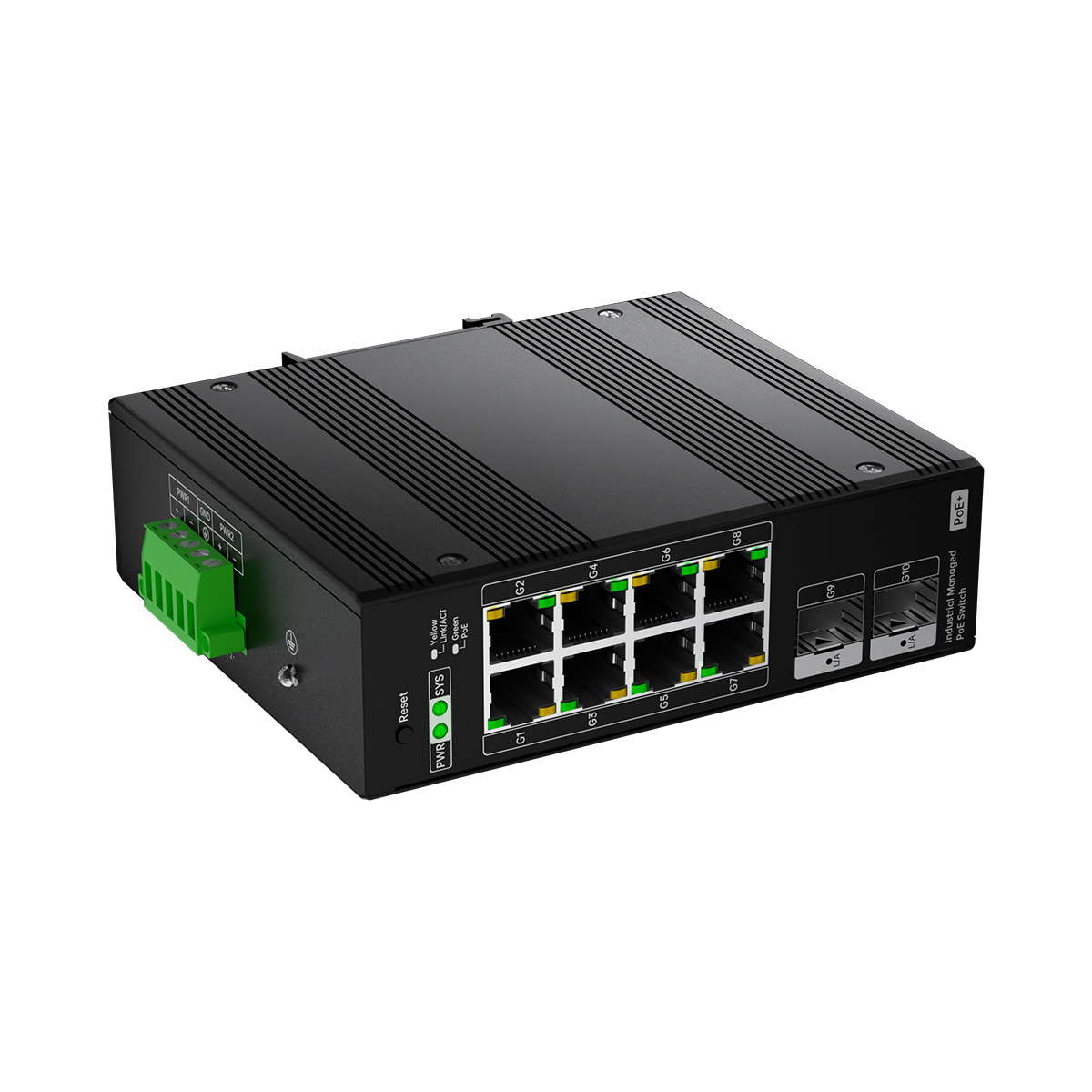

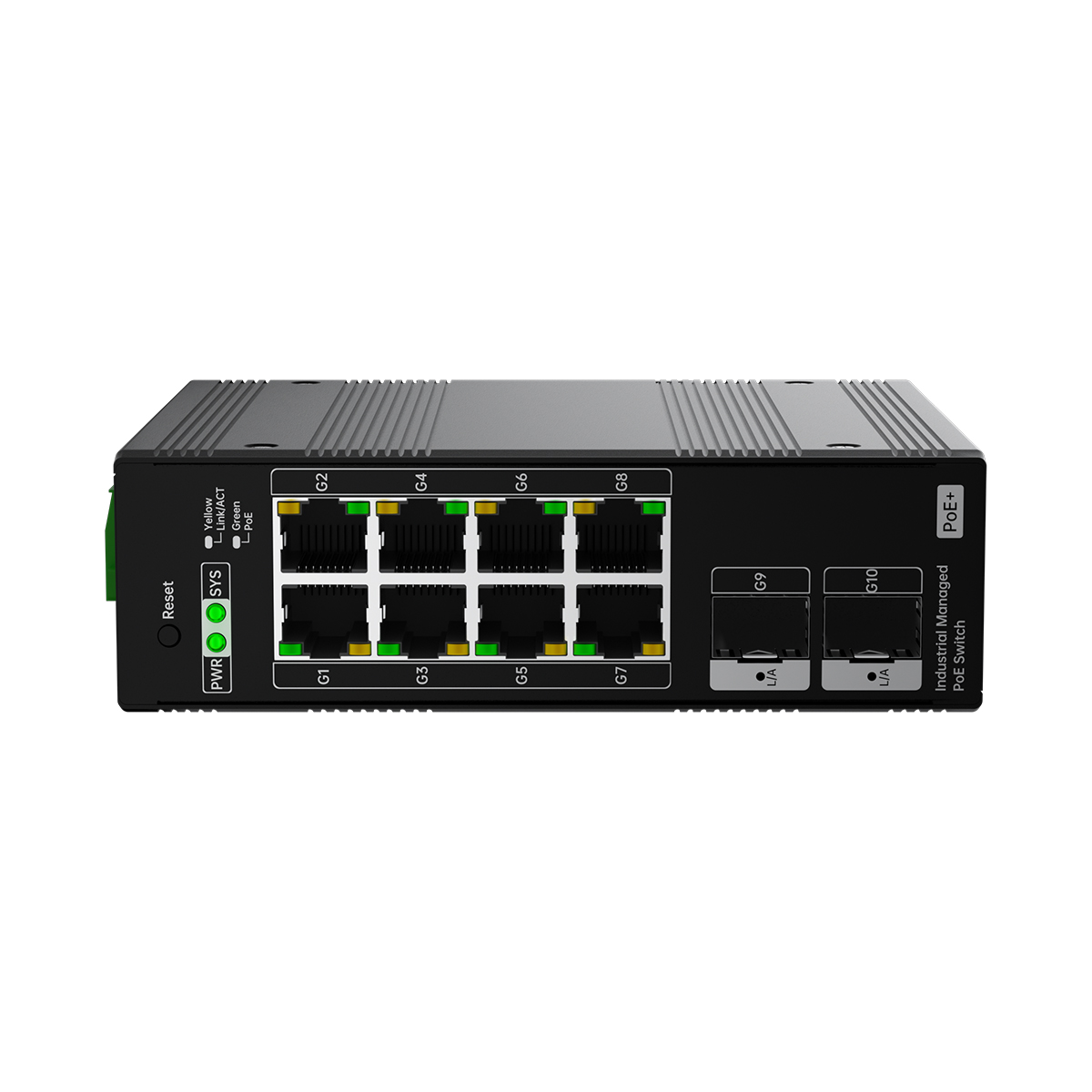

IES7311-8PGE2GF-DC, Web managed industrial PoE switch 8 port,with 2 gigabit SFP uplink,DIN-Rail mount
Features
Industrial Toughness & Wide Temp Range
This 8 port industrial poe switch operates flawlessly from -40°C to 75°C with IP40 protection, 8KV surge defense, and rugged DIN rail mounting.Deploy worry-free in freezing warehouses, blazing factory floors, or dusty sites. Withstand voltage spikes from machinery and lightning. The compact rail-mount design saves space in control cabinets or roadside enclosures. Benefit: Slash maintenance costs and downtime with hardware built for harsh environments.
Flexible Gigabit SFP Uplinks
The web managed industrial PoE switch with dual SFP slots support fiber (single/mode) modules.Break the 100m Ethernet limit – extend networks up to 120km with fiber. Connect distant cameras, sensors, or other switches seamlessly. Avoid EMI noise in electrically noisy plants using optical links. Build scalable, interference-proof backbone networks across large industrial sites.

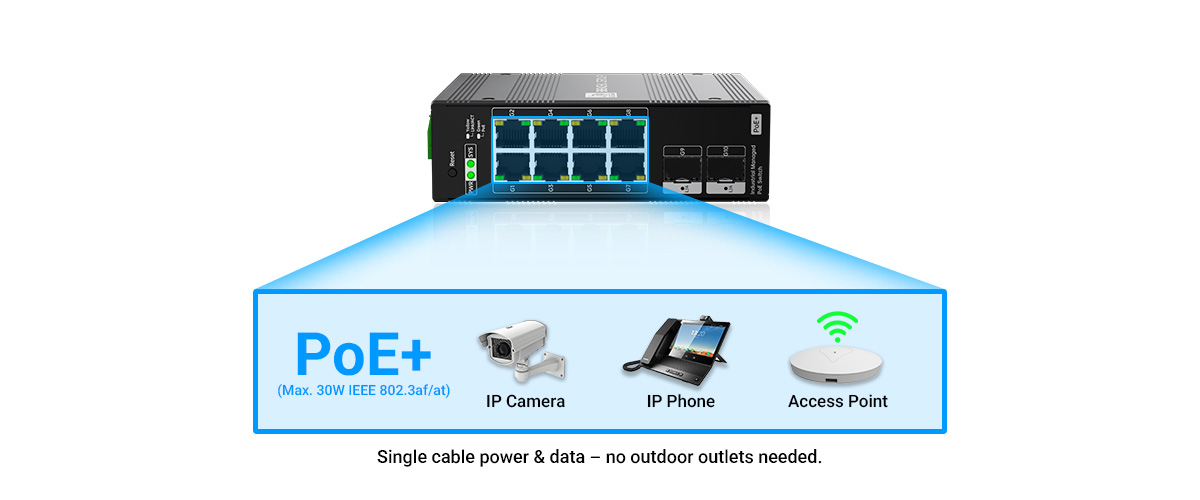

Smart PoE++ Power Management
8× IEEE 802.3at PoE+ ports (30W/port, 240W total) with scheduling, priority, and remote reboot via web GUI.Power IP cameras, wireless APs, or access control over a single cable – no outdoor outlets needed. Schedule PoE on/off to save energy, reboot frozen devices remotely, and prioritize critical gear during power shortages. Cut installation costs 40%+ and ensure 24/7 uptime for powered devices.
Advanced Security & Traffic Control
VLAN isolation, QoS prioritization, bandwidth control, and storm protection.Separate OT/IT networks (e.g., isolate PLCs from office traffic). Guarantee bandwidth for video surveillance or VoIP using QoS. Block broadcast storms that cripple networks. Secure critical operations and eliminate lag for latency-sensitive applications.
Intuitive Web Management Interface
Browser-based centralized control for setup, monitoring, and diagnostics.Configure VLANs, PoE, or rings in minutes – no CLI expertise needed. Monitor port status, traffic flows, and power usage in real-time. Receive alerts for faults or attacks. Deploy and manage distributed industrial networks with IT-level control and 70% less effort.
Connectivity Solutions

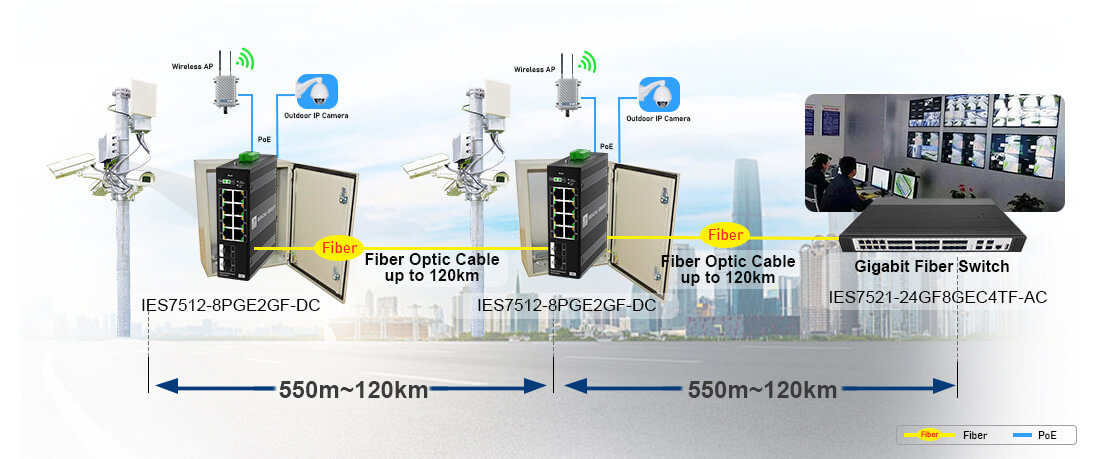

8 Port Gigabit Industrial PoE switch with 2 Gigabit SFP Uplink of connectivity Solution

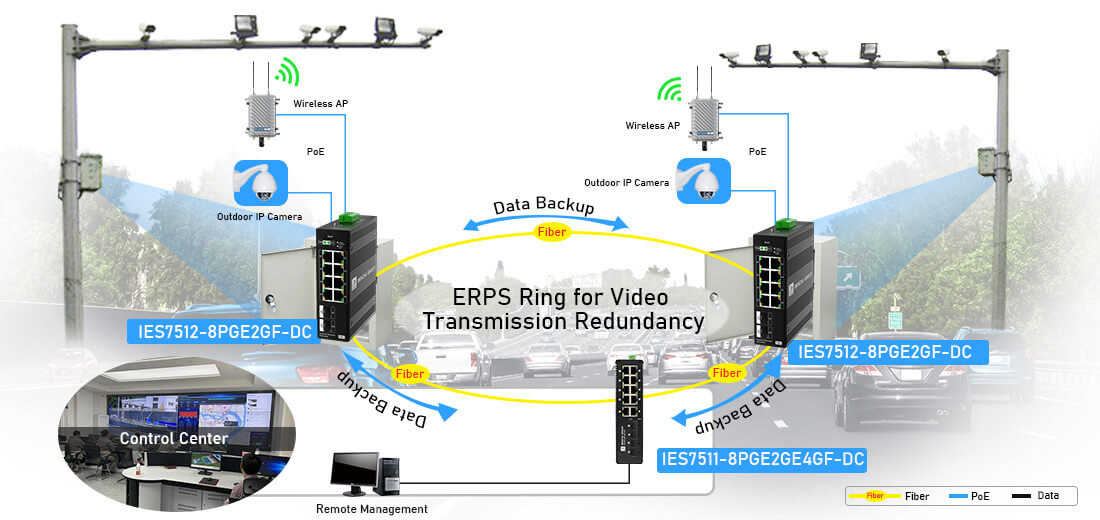

Web Managed Industrial PoE switch 8 port with 2 Gigabit SFP Uplink of connectivity Solution 2
Specification
المواصفات الفنية :
IE7311-8PGE2GF-DC10M / 100M / 1G RJ45 المنافذ النحاسية :
81.25G SFP (الألياف) الموانئ :
2منافذ PoE / PoE + :
8الزر "إعادة ضبط" :
Yesالطاقة عبر الإيثرنت :
*بو القياسية :
IEEE 802.3at Power over Ethernet Plus/PSE; Backward compatible with IEEE 802.3af Power over Ethernetنوع امدادات الطاقة بو :
End-span: 1/2 (+), 3/6 (-)بو انتاج الطاقة :
Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af); Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)ميزانية الطاقة بو :
120 Wattsمواصفات الأداء :
*ذاكرة التخزين المؤقت للحزم :
1.6 Mbأوضاع إعادة التوجيه :
Store-and-forwardعرض النطاق الترددي :
24 Gbpsمعدل إعادة توجيه الحزمة :
14.88Mpps (64 byte packet size)حجم قاعدة بيانات عنوان MAC :
4K (48-bit MAC ad-dresses)دعم الإطار الجامبو :
9Kمتوسط الوقت بين حالات الفشل :
181,365 hours (MTBF) @ 25°Cخدمات L2 - شبكات VLAN :
*وضع علامات على الشبكة المحلية الظاهرية (VLAN) وفقا لمعيار IEEE 802.1Q :
Yesشبكات VLAN القائمة على بروتوكول الإنترنت :
Yesشبكة محلية ظاهرية (VLAN) قائمة على البروتوكول :
Yesخدمات L2 - التوافر :
*السيطرة على العاصفة :
Yes (Broadcast, multicast, unknown unicast)المعيار IEEE 802.3ad - لوائح التأخر (LACP) :
Yesالمعيار IEEE 802.3x :
YesIEEE 802.1w بروتوكول شجرة الامتداد السريع :
Yesتجميع الارتباطات :
*خدمات مراقبة واكتشاف الشبكة :
*سنمب :
v1, v2cأمن الشبكات :
Yesالمعيار IEEE 802.1x :
Yesالأمان المستند إلى المنفذ بواسطة عناوين MAC المقفلة :
Yesجودة الخدمة (QoS) :
*تحديد المعدل المستند إلى المنفذ :
Yes ingress and egressجودة الخدمة القائمة على المنفذ :
Yesبروتوكولات شبكة IEEE :
*البروتوكولات :
• IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3ad Trunking (LACP) • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LXالبروتوكولات 2 :
• IEEE 802.3x Full-Duplex Flow Control • IEEE 802.1Q VLAN Tagging • IEEE 802.1w (RSTP)الإدارة والمراقبة واستكشاف الأخطاء وإصلاحها :
*إدارة كلمات المرور :
Yesالوصول المستند إلى الويب TLS/HTTPS (الإصدار) :
Yes (v1.2)تحميل / تنزيل HTTP (البرنامج الثابت) :
Yesالمصابيح :
Yesلكل منفذ :
Speed, Link, Activity; PoE in different modeلكل جهاز :
Powerالمواصفات المادية :
*الأبعاد (العرض * العمق * الارتفاع) :
150 x 120 x 48 mm (5.91 x 4.72 x 1.89 in)ثقل :
0.9 kg (1.98 lb)حماية شل :
P40 high-strength aluminum caseمتطلبات الطاقة :
DC 48~56V, redundant power with reverse polarity protectionأقصى قوة :
240Wإيثرنت موفر للطاقة (EEE) :
Yes (deactivated by default)مروحة :
Fanlessالمواصفات البيئية :
*درجة حرارة التشغيل :
-40° to 85°C (-40° to 185°F)رطوبة التشغيل :
95% maximum relative humidity (RH), non-condensingارتفاع التشغيل :
10,000 ft (3,000 m) maximumدرجة حرارة التخزين :
-40° to 85°C (-40° to 185°F)رطوبة التخزين (نسبي) :
95% maximum relative humidity, non-condensingارتفاع التخزين :
10,000 ft (3,000 m) maximumالمعيار التنفيذي والحماية :
*الحماية من الصواعق :
*IEC61000-4-3 (RS) :
10V/m (80~1000MHz)FCC الجزء 15/CISPR22 (EN55022) :
Class BIEC61000-6-2 :
Common Industrial StandardIEC61000-4-9 (مجال مغناطيسي نابض) :
1000A/mIEC61000-4-10 (تذبذب مخمد) :
30A/m, 1MHzIEC61000-4-12 / 18 (موجة الصدمة) :
CM 2.5kV, DM 1kVIEC61000-4-4 (EFT) :
Power cable:±4kV, Data cable: ±2kVIEC61000-4-16 (إرسال الوضع المشترك) :
30V, 300V, 1sIEC61000-4-2 (ESD) :
±8kV contact discharge, ±15kV air dischargeIEC61000-4-6 (إرسال التردد اللاسلكي) :
10V(150kHz~80MHz)IEC61000-4-8 :
100A/m, 1000A/m, 1s-3sIEC61000-4-5 (زيادة): كابل الطاقة :
CM±4kV/ DM±2kV, Data cable: ±4kVالخواص الميكانيكية :
*IEC60068-2-6 :
Anti VibrationIEC60068-2-32 :
Free FallIEC60068-2-27 :
Anti Shockمحتويات العبوة :
*جميع الموديلات :
Smart Industrial Switch ; Brackets and screws for DIN-Rail mounting, which are already installed in the switch; Rubber protection caps, which are already installed in the SFP sockets Installation guideنوع العمل :
Industrialباندريدث :
1Gالمزيد من الفلاتر :
WEB Managed
