Overview

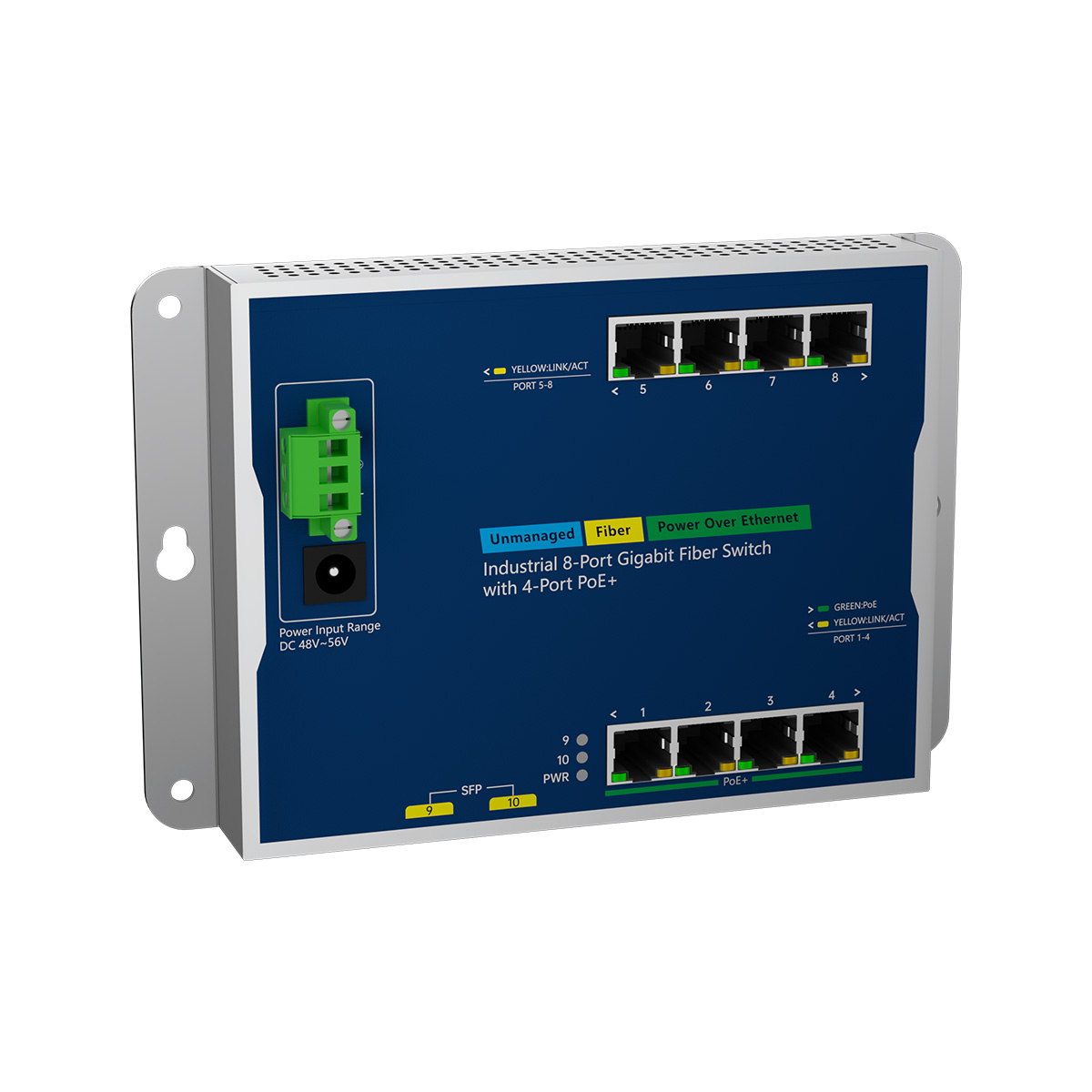

IES7211W-4P4GE2GF-DC, Flat-type 8 Port Gigabit Industrial Fiber Switch with 4 PoE+, 2 Gigabit SFP Uplink, Wall-mount or DIN-Rail Mount
Features
Space-Saving Flat Design: Maximize Cabinet Real Estate
At just 25mm deep—60% slimmer than standard industrial switches—this flat-type PoE switch fits into narrow control cabinets, traffic signal housings, or pole-mounted enclosures where space is critical. Its wall/DIN-rail mountability eliminates airflow blockage, enabling high-density deployments in smart city infrastructure without costly cabinet upgrades. Benefit: Reduce installation costs by 30% and accelerate project timelines for municipal or transportation networks.
Hybrid 4+4 Port Design: Strategic Power Allocation
Dedicate 4 PoE+ ports (30W each) exclusively to cameras/sensors while reserving 4 non-PoE Gigabit ports for bandwidth-critical devices like NVRs or industrial controllers. Benefit: Prevents PoE power contention in surveillance hubs – ensures full 30W to PTZ cameras while non-PoE ports deliver uninterrupted 1000Mbps to recording servers. Ideal for traffic control cabinets where 50% of devices require power.
Full PoE+ Power Budget: Power High-Consumption Devices
Delivers 120W total PoE budget with 30W per port (802.3at), supporting power-hungry devices like PTZ cameras, Wi-Fi 6/6E APs, and outdoor sensors on a single cable. No external injectors needed. Benefit: Slash cabling complexity by 50% in surveillance or building automation projects while ensuring uninterrupted operation during peak loads.

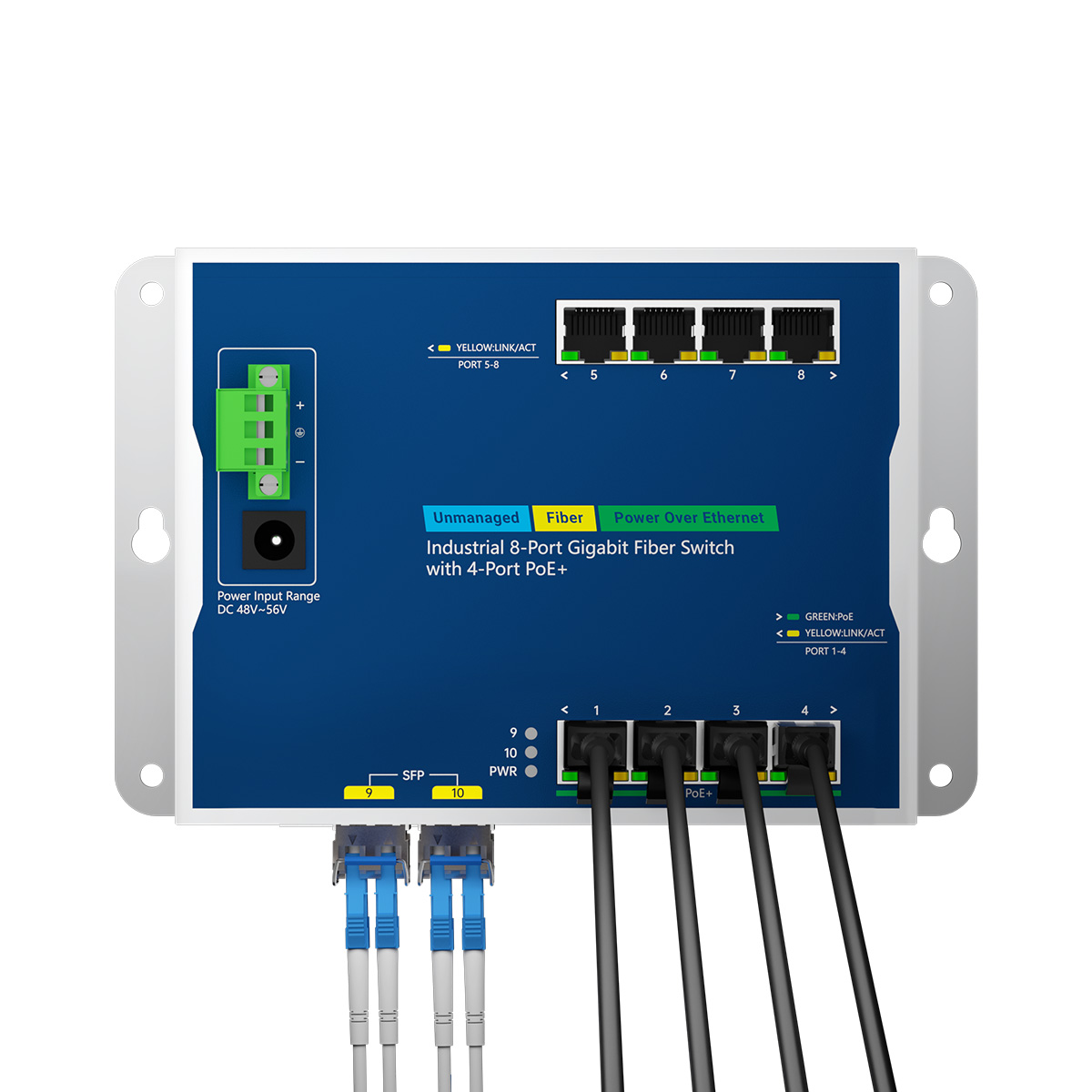

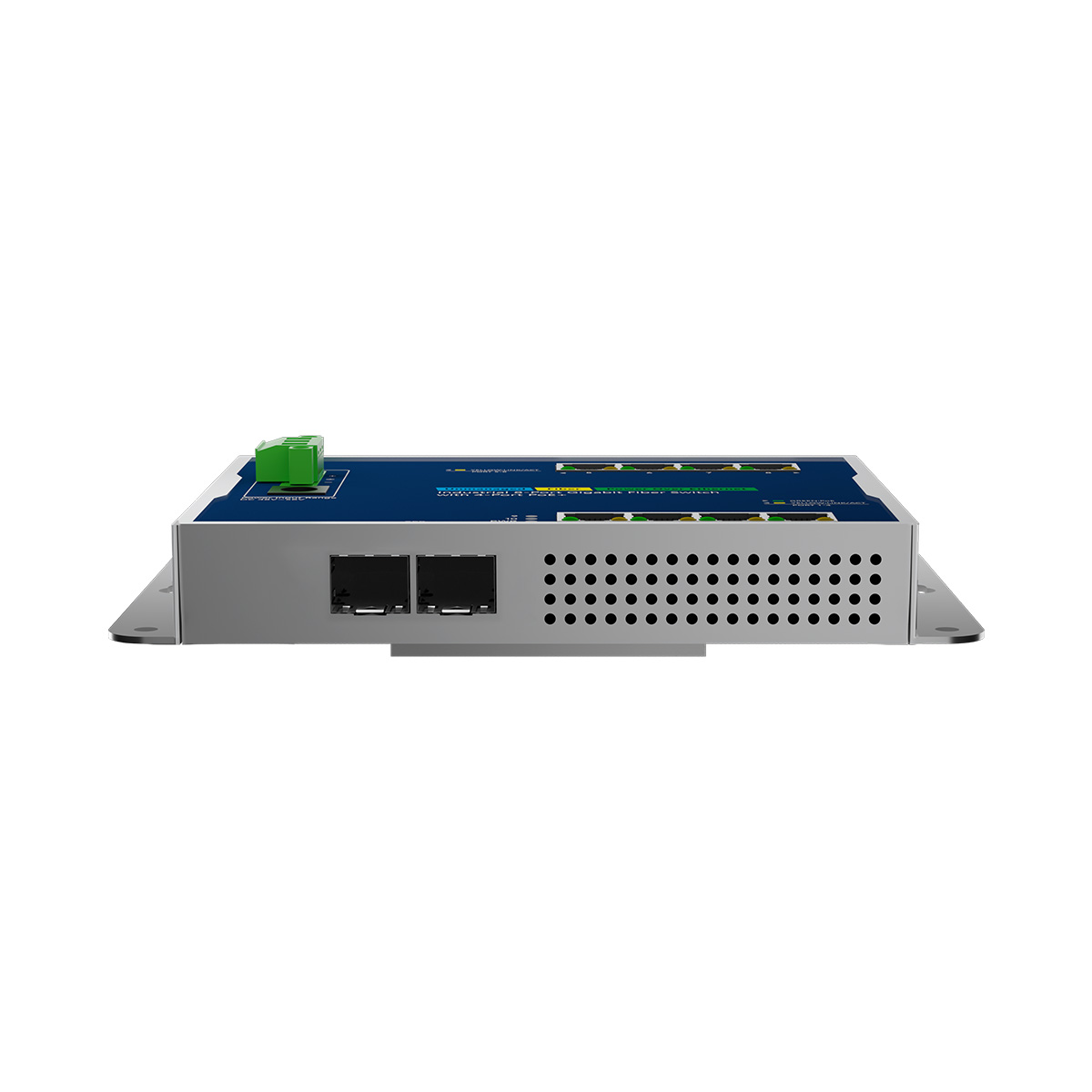

Dual Gigabit SFP Uplinks: Future-Proof Fiber Connectivity
Equipped with two 1.25Gbps SFP slots, this unmanaged industrial switch delivers EMI-resistant fiber connections supporting distances up to 80km (with single-mode modules). Enables simple star-topology deployments across distributed sites like factories, railways, and substations—where copper cabling suffers from interference. Eliminate signal degradation in high-noise environments with plug-and-play fiber reliability—no configuration needed.
Extreme Environment Resilience: Operate Anywhere
Rated for -40°C to +75°C operation with IP40 metal housing and ±15kV ESD protection. Conformal coating option available for corrosive environments (e.g., oil rigs, coastal sites). Benefit: Deploy confidently in Arctic wind farms or desert solar plants where standard switches fail—cutting maintenance costs by 40%.
Redundant Power & Industrial Security

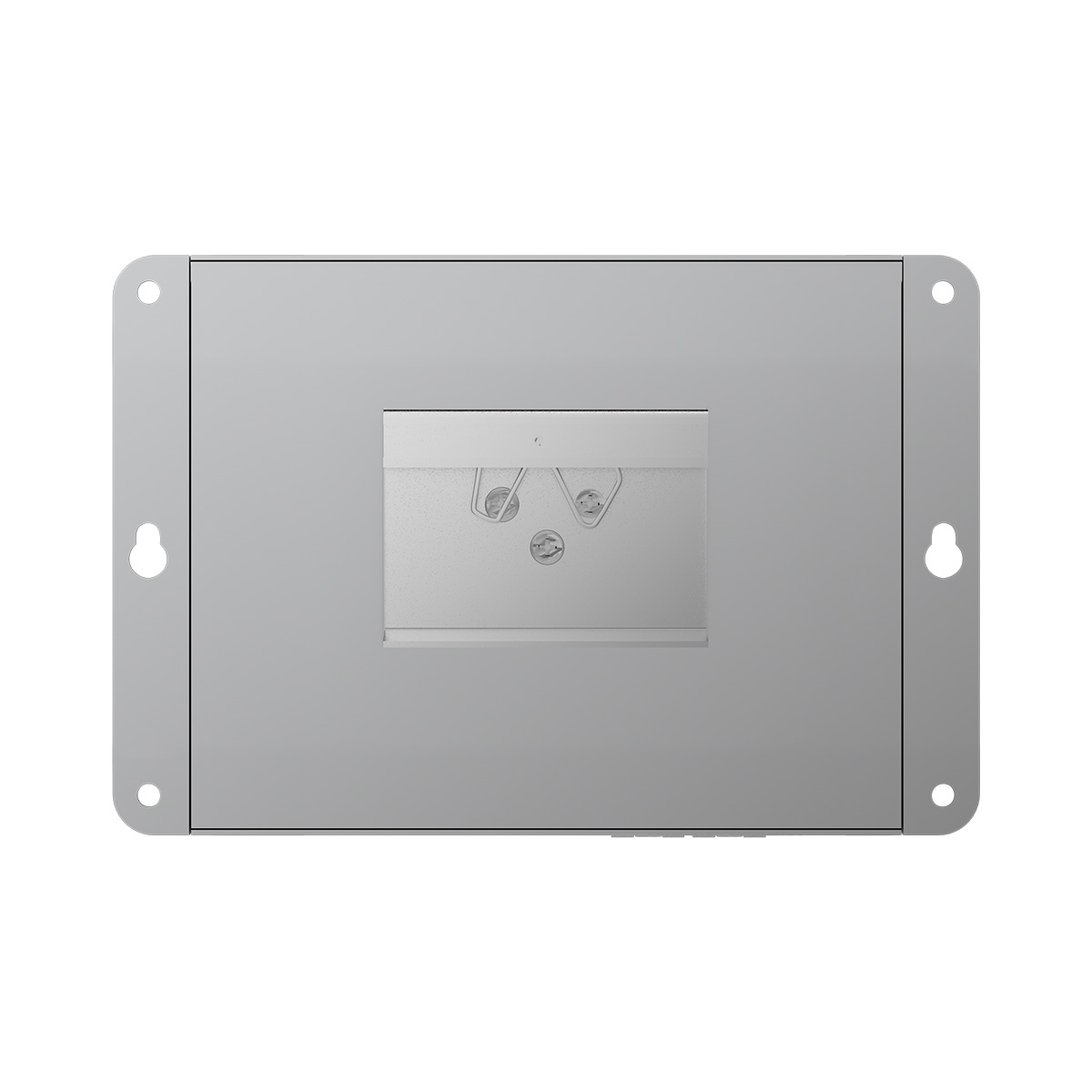

Designed for versatile installation, this poe switch supports both wall mounting and standard 35mm DIN-rail attachment—ideal for control panels, junction boxes, or vertical surfaces. Tool-less rail clips enable quick deployment and easy maintenance. The mounting flexibility reduces integration time and supports rapid scalability across distributed networks. Whether deployed in a factory floor cabinet or roadside enclosure, its adaptability streamlines installation and improves service efficiency—perfect for system integrators and OEMs seeking plug-and-play readiness.
Connectivity Solutions
Flat-type Industrial PoE++ switch 8 Port with 2 Gigabit SFP Uplink of Application Solution
Specification
المواصفات الفنية :
IE7211W-8PGE2GF-DC10M / 100M / 1G RJ45 المنافذ النحاسية :
81.25G SFP (الألياف) الموانئ :
2منافذ PoE / PoE + :
4الطاقة عبر الإيثرنت :
*بو القياسية :
Backward compatible IEEE 802.3at Power over Ethernet Plus/PSE； Backward compatible with IEEE 802.3af Power over Ethernetنوع امدادات الطاقة بو :
End-span: 1/2(+), 3/6(-)بو انتاج الطاقة :
Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)； Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)مواصفات الأداء :
*ذاكرة التخزين المؤقت للحزم :
2.1 Mbأوضاع إعادة التوجيه :
Store-and-forwardعرض النطاق الترددي :
24 Gbpsمعدل إعادة توجيه الحزمة :
14.88Mpps (64 byte packet size)حجم قاعدة بيانات عنوان MAC :
4K (48-bit MAC ad-dresses)دعم الإطار الجامبو :
9Kمتوسط الوقت بين حالات الفشل :
165,252 hours (MTBF) @ 25°C100M النحاس الكمون :
8.532µs; 8.613µs; 8.712µs1G النحاس الكمون :
3.435µs; 3.541µs; 3.643µs1G الألياف الكمون :
2.993µs; 3.112µs; 3.183µsبروتوكولات شبكة IEEE :
*البروتوكولات :
• IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE)المصابيح :
Yesلكل منفذ :
Speed, Link, Activity; PoE in different modeلكل جهاز :
Powerالمواصفات المادية :
*الأبعاد (العرض * العمق * الارتفاع) :
178 x 134 x 24 mm (5.91 x 5.12 x 1.89 in)ثقل :
0.69 kg (1.52 lb)حماية شل :
IP30 high-strength caseمتطلبات الطاقة :
DC 48~56V, redundant power with reverse polarity protectionمروحة :
Fanlessالمواصفات البيئية :
*درجة حرارة التشغيل :
-40° to 75°C (-40° to 176°F)رطوبة التشغيل :
95% maximum relative humidity (RH), non-condensingارتفاع التشغيل :
10,000 ft (3,000 m) maximumدرجة حرارة التخزين :
-40° to 85°C (-40° to 185°F)رطوبة التخزين (نسبي) :
95% maximum relative humidity, non-condensingارتفاع التخزين :
10,000 ft (3,000 m) maximumالمعيار التنفيذي والحماية :
*الحماية من الصواعق :
*IEC61000-4-3 (RS) :
10V/m (80~1000MHz)FCC الجزء 15/CISPR22 (EN55022) :
Class BIEC61000-6-2 :
Common Industrial StandardIEC61000-4-9 (مجال مغناطيسي نابض) :
1000A/mIEC61000-4-10 (تذبذب مخمد) :
30A/m, 1MHzIEC61000-4-12 / 18 (موجة الصدمة) :
CM 2.5kV, DM 1kVIEC61000-4-4 (EFT) :
Power cable:±4kV, Data cable: ±2kVIEC61000-4-16 (إرسال الوضع المشترك) :
30V, 300V, 1sIEC61000-4-2 (ESD) :
±8kV contact discharge, ±15kV air dischargeIEC61000-4-6 (إرسال التردد اللاسلكي) :
10V(150kHz~80MHz)IEC61000-4-8 :
100A/m, 1000A/m, 1s-3sIEC61000-4-5 (زيادة): كابل الطاقة :
CM±4kV/ DM±2kV, Data cable: ±4kVالخواص الميكانيكية :
*IEC60068-2-6 :
Anti VibrationIEC60068-2-32 :
Free FallIEC60068-2-27 :
Anti Shockالانبعاثات الكهرومغناطيسية والمناعة :
*الشهادات :
CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013أمان :
*شهادات السلامة :
CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ；(ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)الضمان والدعم :
*الضمان المحدود للأجهزة :
Limited Lifetime*الدعم الفني عبر الهاتف والبريد الإلكتروني* :
Limited Lifetime*24x7 الدردشة عبر الإنترنت الدعم الفني :
Limited Lifetime*محتويات العبوة :
*جميع الموديلات :
Industrial PoE Switch； Brackets and screws for DIN-Rail mounting, which are already installed in the switch； Rubber protection caps, which are already installed in the SFP sockets, Installation guideنوع العمل :
Industrialباندريدث :
1Gالمزيد من الفلاتر :
Unmanaged
