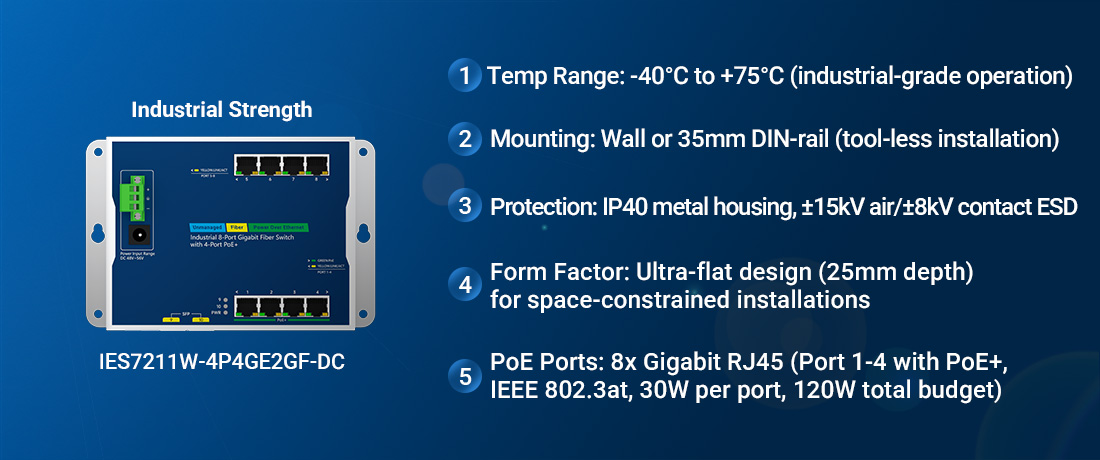

Industrial networking environments often face the dual challenges of space constraints and the need for robust, reliable connectivity. Addressing these needs, the new IES7211W-4P4GE2GF-DC flat-type industrial PoE+ switch from BENCHU combines an ultra-compact form factor with a strategically designed hybrid port configuration. This 8-port Gigabit switch is engineered for harsh conditions, operating reliably from -40°C to +75°C, making it a compelling solution for smart city infrastructure, transportation systems, and industrial automation.

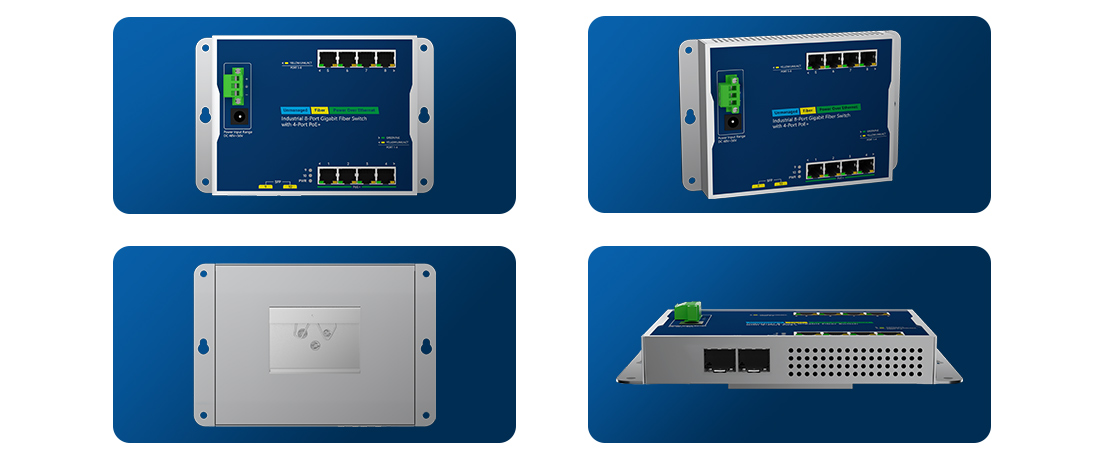

A key innovation is its space-saving design. At only 25mm deep, this flat-type switch is approximately 60% slimmer than conventional industrial models, allowing seamless integration into narrow control cabinets, traffic signal housings, or pole-mounted enclosures. The unit supports both DIN-rail mounting and wall installation with tool-less clips, significantly reducing deployment time and cost. This flexibility enables high-density installations without requiring cabinet upgrades or compromising airflow.
The switch features a smart hybrid port configuration of four IEEE 802.3at PoE+ ports and four standard Gigabit Ethernet ports. This design allows network planners to dedicate high-power PoE+ ports (30W each, 120W total budget) to devices such as PTZ cameras, WiFi 6 access points, or sensors, while reserving non-PoE ports for bandwidth-critical equipment like NVRs or controllers. This segregation prevents power contention and ensures optimal performance for both power and data-intensive devices.
For long-distance and noise-immune connectivity, the switch is equipped with dual 1.25G SFP uplink slots, supporting fiber links of up to 80km with appropriate modules. This industrial fiber switch capability eliminates electromagnetic interference in challenging environments like railways, substations, or factory floors. Additionally, the device includes redundant power supply support via dual 48-56V DC inputs, along with IP40 metal housing and ±15kV ESD protection, ensuring continuous operation in extreme conditions.
Ideal for OEMs and system integrators, the switch supports customization including conformal coating for corrosive atmospheres, custom firmware, and branding. With a >200,000-hour MTBF and a 5-year warranty, it offers a reliable, future-proof foundation for surveillance networks, industrial control panels, and intelligent transportation systems. This release underscores a clear industry trend toward highly integrated, environmentally resilient, and deployment-optimized networking hardware.
