24 Port Gigabit Industrial PoE++ Switch with 4 Gigabit RJ45/SFP Combo Uplink (IES7221-24PGE4GC-4BT-AC)

24 Port Gigabit Industrial PoE++ Switch
24 Port Gigabit Industrial PoE++ Switch Unmanaged
24 Port Gigabit Industrial PoE++ Switch Factory
Rack-mount 24 Port Industrial POE++ Switch

24 Port Gigabit Industrial PoE++ Switch with 4 Gigabit RJ45/SFP Combo Uplink (IES7221-24PGE4GC-4BT-AC)

استعلام

Designed for IP Camera/Wireless Access Point

Product Highlights
    • 4-10/100/1000Mbps RJ45 ports with PoE++ (Port 1-port 4)
    • 20-10/100/1000Mbps RJ45 ports with PoE+ (Port 5-port 24)
    • 4-Gigabti RJ45/SFP port for uplink
    • Complies with IEEE 802.3af/at/bt Power over Ethernet
    • Supports PoE power up to 90 watts for Port 1 to 4
    • Supports PoE power up to 30 watts for Port 5 to 24
    • Supports contact discharge of ±8KV DC and air discharge of ±15KV
    • DC for Ethernet ESD protection
    • -30 to 75 degrees operating temperature
    • Rack mounting installation
    • Backplane bandwidth 128Gbps，Packet forwarding rate 47.62Mpps，MAC address 8k

24 Port industrial POE++ switch authentication

Overview



IES7221-24PGE4GC-4BT-AC, 24 Ports Gigabit Industrial PoE++ Switch with 4 Gigabit RJ45/SFP Combo Uplink,4 PoE++(90W) and 20 PoE+(30W) Ports, 500W Power budget

BENCHU GROUP's IES7221-24PGE4GC-4BT-AC is a high-performance 24 port gigabit industrial PoE++ switch designed to meet the rigorous demands of industrial networks. This switch features 4 Gigabit RJ45/SFP Combo Uplink ports, ensuring seamless data transmission and network expansion flexibility. With 4 PoE++ (90W) and 20 PoE+ (30W) ports, it provides a robust 500W power budget, enabling it to support high-power devices like PTZ cameras, wireless APs, and IoT equipment alongside standard PoE devices.

Engineered for challenging environments, this Industrial PoE++ switch operates reliably in extreme temperatures from -30°C to 75°C, with 8KV ESD protection safeguarding your network from electrical surges. Its industrial-grade design ensures durability and stability, making it ideal for applications in smart cities, surveillance systems, manufacturing automation, and transportation networks.

This 24 port gigabit industrial PoE++ switch brings exceptional value by simplifying network deployment, reducing installation costs with its Power over Ethernet capabilities, and supporting bandwidth-intensive applications. Users benefit from faster data speeds, enhanced network reliability, and the ability to power critical devices directly through the network. The IES7221-24PGE4GC-4BT-AC delivers cost-effective, scalable, and energy-efficient solutions for modern industrial networking needs.



  • Physical Port
    4-10/100/1000BASE-TX Gigabit Ethernet RJ45 ports with PoE++  (Ports 1 to 4)
    20-10/100/1000BASE-TX Gigabit Ethernet RJ45 ports with PoE+  (Ports 5 to 24)
    4-Gigabit RJ45/SFP Combo  (Ports 17 to 20)

    Power over Ethernet
    Complies with IEEE 802.3bt Power over Ethernet Plus Plus
    Backward compatible with IEEE 802.3at/af Power over Ethernet
    Up to 4 ports of IEEE 802.3bt devices powered
    Up to 24 ports of IEEE 802.3af/802.3at devices powered
    Supports PoE power up to 90 watts for port 1 to 4
    Supports PoE power up to 30 watts for port 5 to 24
    Auto detects powered device (PD)
    Remote power feeding up to 100 meters
  • Switching
    Backplane bandwidth 128Gbps，Packet forwarding rate 47.62Mpps，MAC address 8k
    Hardware-based 10/100/1000Mbps (half/full duplex) auto-negotiation and auto MDI/MDI-X
    Features Store-and-Forward mode with wire-speed filtering and forwarding rates
    IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • Hardware
    Industrial Case and Installation
    High- strength Aluminum case
    Rack mount design
    100~260V AC, redundant power with reverse polarity protection
    Supports 8KV DC Ethernet ESD protection
    -30 to 75 degrees C operating temperature
    LED indicators for Power,PoE Working and LINK/ACT





Features

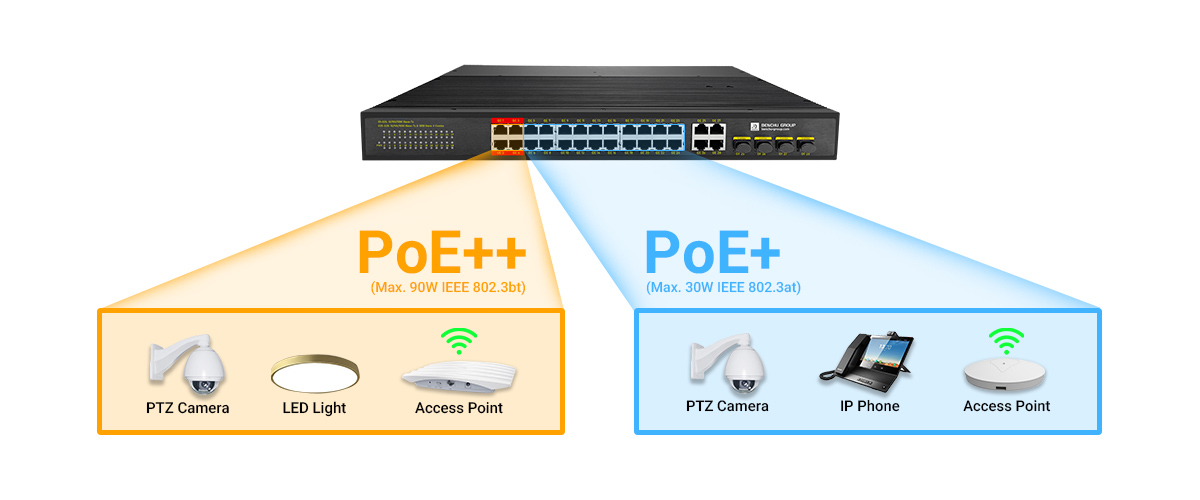

High-Power PoE++ Support

Equipped with 4 PoE++ (90W) and 20 PoE+ (30W) ports, the IES7221-24PGE4GC-4BT-AC offers a total 500W power budget, meeting the power-intensive needs of modern devices such as PTZ cameras, high-performance wireless APs, and industrial IoT equipment. This eliminates the need for additional power adapters, simplifying deployment and reducing cabling costs. Its ability to support diverse power requirements makes it suitable for applications requiring both high-power and standard PoE devices, ensuring versatility and scalability in industrial networks.



Industrial-Grade Design for Harsh Environments

Built to endure extreme industrial conditions, the IES7221-24PGE4GC-4BT-AC operates reliably in temperatures ranging from -30°C to 75°C. The rugged construction and high-quality materials ensure durability and resistance to environmental factors like dust, moisture, and vibration. It is ideal for outdoor or semi-outdoor installations in challenging environments, including factories, mines, and smart transportation systems. This robust design provides uninterrupted network performance even in the most demanding operational settings.



4 Gigabit RJ45/SFP Combo Uplink Ports

The inclusion of 4 Gigabit RJ45/SFP Combo Uplink ports provides flexibility for network expansion and high-speed data transfer. These uplinks allow seamless connections to fiber or copper cables, ensuring compatibility with a wide range of networking infrastructures. Whether scaling an existing network or connecting to core systems, these uplinks provide reliable data throughput, enabling bandwidth-intensive applications such as HD video streaming, IoT data aggregation, and critical surveillance systems.



ESD Protection for Enhanced Stability

Featuring 8KV ESD (Electrostatic Discharge) protection, this 24 port industrial PoE++ switch safeguards connected devices and network equipment against sudden electrical surges. This ensures stable and uninterrupted operation, especially in environments prone to static discharge or power fluctuations. By protecting your investment from potential damage, the switch reduces maintenance costs and prolongs the lifespan of both the network infrastructure and connected devices, making it a reliable choice for industrial applications.



Comprehensive Power Management

This 24 port industrial PoE++ switch offers intelligent power management, ensuring optimal allocation of its 500W power budget. It prioritizes critical devices while preventing overloading, improving network efficiency and reliability. Users can monitor and control power usage via an intuitive interface, reducing energy consumption and operational costs. This feature makes it ideal for deployments with varied power demands, such as large-scale surveillance systems or smart city applications, where efficient power distribution is crucial.



Plug-and-Play Installation

Designed for ease of use, the IES7221-24PGE4GC-4BT-AC supports plug-and-play installation, eliminating the need for complex configurations. This simplifies deployment, even for non-technical users, saving time and reducing operational costs. Its auto-sensing PoE ports automatically detect connected devices' power requirements, ensuring compatibility and minimizing setup errors. This feature is particularly beneficial for fast-paced industrial projects requiring quick and reliable network deployment.





Connectivity Solutions



24 Port Gigabit Industrial PoE++ Switch with 4 Gigabit RJ45/SFP Uplink Connectivity Solution

24 Port Gigabit Industrial PoE++ Switch with 4 Gigabit RJ45/SFP Uplink Connectivity Solution





Specification



  • المواصفات الفنية :

    IES7221-24PGE4GC-4BT-AC

  • 10M / 100M / 1G RJ45 المنافذ النحاسية :

    24

  • جيجابت R4J5 و SFP كومبو :

    4

  • منافذ PoE / PoE + :

    20 (up to 30W per port)

  • منافذ PoE / PoE + / PoE ++ / UPoE + :

    4 (up to 90W per port)

  • الطاقة عبر الإيثرنت :

    *

  • بو القياسية :

    IEEE 802.3bt Power over Ethernet Plus Plus / PoE++； Backward compatible with IEEE 802.3af/at Power over Ethernet

  • نوع امدادات الطاقة بو :

    End-span: 1/2/4/5 (+), 3/6/78 (-)

  • بو انتاج الطاقة :

    Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)； Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at) ； Per port 52V DC, 1800mA. max. 90 watts (IEEE 802.3bt)

  • مواصفات الأداء :

    *

  • ذاكرة التخزين المؤقت للحزم :

    8.2 Mb

  • أوضاع إعادة التوجيه :

    Store-and-forward

  • عرض النطاق الترددي :

    128 Gbps

  • معدل إعادة توجيه الحزمة :

    47.62Mpps (64 byte packet size)

  • حجم قاعدة بيانات عنوان MAC :

    8K (48-bit MAC ad-dresses)

  • دعم الإطار الجامبو :

    9K

  • بروتوكولات شبكة IEEE :

    *

  • البروتوكولات :

    • IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3bt PoE++ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3x Full-Duplex Flow

  • رصد :

    *

  • المصابيح :

    Yes

  • لكل منفذ :

    Speed, Link, Activity; PoE in different mode

  • لكل جهاز :

    Power

  • المواصفات المادية :

    *

  • الأبعاد (العرض * العمق * الارتفاع) :

    440x 290 x 44.5mm (17.32 x 11.42 x 1.75 in)

  • ثقل :

    4.8 kg (10.58 lb)

  • استهلاك الطاقة :

    500W (when all ports used, line-rate traffic and max PoE)

  • أقصى قوة :

    22W (worst case, all ports used, full PoE, line-rate traffic) (Watts)

  • استهلاك الطاقة في وضع الخمول :

    18W (all ports link-down standby) (Watts)

  • إيثرنت موفر للطاقة (EEE) :

    Yes (deactivated by default)

  • مروحة :

    Fanless

  • المواصفات البيئية :

    *

  • درجة حرارة التشغيل :

    -30° to 75°C (-22° to 167°F)

  • رطوبة التشغيل :

    95% maximum relative humidity (RH), non-condensing

  • ارتفاع التشغيل :

    10,000 ft (3,000 m) maximum

  • درجة حرارة التخزين :

    -40° to 85°C (-40° to 185°F)

  • رطوبة التخزين (نسبي) :

    95% maximum relative humidity, non-condensing

  • ارتفاع التخزين :

    10,000 ft (3,000 m) maximum

  • المعيار التنفيذي والحماية :

    *

  • الحماية من الصواعق :

    *

  • IEC61000-4-3 (RS) :

    10V/m (80~1000MHz)

  • FCC الجزء 15/CISPR22 (EN55022) :

    Class B

  • IEC61000-6-2 :

    Common Industrial Standard

  • IEC61000-4-9 (مجال مغناطيسي نابض) :

    1000A/m

  • IEC61000-4-10 (تذبذب مخمد) :

    30A/m, 1MHz

  • IEC61000-4-12 / 18 (موجة الصدمة) :

    CM 2.5kV, DM 1kV

  • IEC61000-4-4 (EFT) :

    Power cable:±4kV, Data cable: ±2kV

  • IEC61000-4-16 (إرسال الوضع المشترك) :

    30V, 300V, 1s

  • IEC61000-4-2 (ESD) :

    ±8kV contact discharge, ±15kV air discharge

  • IEC61000-4-6 (إرسال التردد اللاسلكي) :

    10V(150kHz~80MHz)

  • IEC61000-4-8 :

    100A/m, 1000A/m, 1s-3s

  • IEC61000-4-5 (زيادة): كابل الطاقة :

    CM±4kV/ DM±2kV, Data cable: ±4kV

  • الخواص الميكانيكية :

    *

  • IEC60068-2-6 :

    Anti Vibration

  • IEC60068-2-32 :

    Free Fall

  • IEC60068-2-27 :

    Anti Shock

  • الانبعاثات الكهرومغناطيسية والمناعة :

    *

  • الشهادات :

    CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013

  • أمان :

    *

  • شهادات السلامة :

    CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ；(ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)

  • الضمان والدعم :

    *

  • الضمان المحدود للأجهزة :

    Limited Lifetime*

  • الدعم الفني عبر الهاتف والبريد الإلكتروني* :

    Limited Lifetime*

  • 24x7 الدردشة عبر الإنترنت الدعم الفني :

    Limited Lifetime*

  • محتويات العبوة :

    *

  • جميع الموديلات :

    Smart Industrial PoE Switch；Brackets and screws for DIN-Rail mounting which are already installed in the industrial switch ； Rubber protection caps, which are already installed in the SFP sockets Installation guide

  • نوع العمل :

    Industrial

  • باندريدث :

    1G

  • المزيد من الفلاتر :

    Unmanaged

Questions & Answers

What is the total power budget of this 24 port gigabit industrial PoE++ switch?

The switch provides a 500W power budget, distributing up to 90W on 4 PoE++ ports and 30W on 20 PoE+ ports.



What types of devices can this 24 port gigabit industrial PoE++ switch support?

The PoE++ ports power high-demand devices like PTZ cameras and wireless APs, while the PoE+ ports support standard PoE devices like IP cameras and VoIP phones.



What uplink options does this 24 port gigabit industrial PoE++ switch offer?

It features 4 Gigabit RJ45/SFP combo uplink ports, allowing both copper and fiber connectivity for high-speed and long-distance data transmission.



Is this 24 port gigabit industrial PoE++ switch suitable for extreme environments?

Yes, it operates in temperatures from -30°C to 75°C and features 8KV ESD protection, ensuring reliable performance in harsh industrial conditions.



How does this 24 port gigabit industrial PoE++ switch support network scalability?

Its 24 ports and flexible combo uplinks enable seamless integration into large-scale networks, making it ideal for expanding industrial and smart city applications.
