Overview
IES7521-24PGE4TF-AC, Layer 3 Managed 24 Ports Gigabit Industrial PoE+ Switch,with 4-10Gb SFP+ Uplink,24 PoE+ Ports,500W Power Budget
-
Physical Port
24-10/100/1000BASE-TX Fast Ethernet RJ45 ports with PoE+4-1G/2.5G/10GBASE-X mini-GBIC/SFP+ slot1-RJ45 console interface for switch management and setup1-Reset button for system factory default and reboot1-USB interface for switch setupPower over EthernetComplies with IEEE 802.3at Power over Ethernet Plus, end-span PSEBackward compatible with IEEE 802.3af Power over EthernetUp to 8 ports of IEEE 802.3af/802.3at devices poweredSupports PoE power up to 30 watts for each PoE portAuto detects powered device (PD)Remote power feeding up to 100 metersCircuit protection prevents power interference between portsRemote power feeding up to 100m in standard modePoE managementTotal PoE power budget controlPer port PoE function enable/disablePoE Port Power feeding priorityPer PoE port power limitationPoE Timed startup and shutdownPD classification detectionIntelligent PoE featuresPD alive checkPoE schedulePoE extensionSwitchingBackplane bandwidth 256Gbps,Packet forwarding rate 84Mpps,MAC address 16kHardware-based 10/100/1000Mbps (half/full duplex) auto-negotiation and auto MDI/MDI-XFeatures Store-and-Forward mode with wire-speed filtering and forwarding ratesIEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation -
Hardware
Industrial Case and InstallationHigh- strength Aluminum caseRack mount design100~260V DC, redundant power with reverse polarity protectionSupports 8KV DC Ethernet ESD protection-40 to 85 degrees C operating temperatureLED indicators for Power,PoE Working and LINK/ACTIEC61000-4-3 (RS):10V/m (80~1000MHz)FCC Part 15/CISPR22 (EN55022):Class BIEC61000-6-2:Common Industrial StandardIEC61000-4-9 (Pulsed magnet field) :1000A/mIEC61000-4-10 (Damped oscillation) :30A/m, 1MHzIEC61000-4-12/18 (Shockwave) :CM 2.5kV, DM 1kVIEC61000-4-4(EFT):Power cable:±4kV, Data cable: ±2kVIEC61000-4-16(Common-mode transmission) :30V, 300V, 1sIEC61000-4-2 (ESD):±8kV contact discharge, ±15kV air dischargeIEC61000-4-6 (Radio frequency transmission) :10V(150kHz~80MHz)IEC61000-4-8 (Power frequency magnetic field) :100A/m, 1000A/m, 1s-3sIEC61000-4-5 (Surge) Power cable:CM±4kV/ DM±2kV, Data cable: ±4kVMechanical PropertiesIEC60068-2-6:Anti VibrationIEC60068-2-32:Free FallIEC60068-2-27:Anti ShockSecuritySupport IEEE 802.1xSupport RADIUS accountingSupport Access Control Lists (ACLs)Support MAC SecuritySupport IP Source Guard prevents IP spoofing attacksSupport DoS Attack PreventionSupport aaa authentication -
Layer 2 Features
Support IEEE 802.1Q VLANSupport MAC VLANSupport Surveillance VLANSupport Voice VLANSupport QinQ VLANSupports Spanning Tree ProtocolSupports Link Aggregation (LACP)Supports port mirrorSupports Multicast Filtering (IGMP)Supports DHCPSupports ERPSSupports RMONSupports MLD snoopingSupports MVRSupports UDLDSupports Quality of Service (Qos)Supports Static routingSupports Port Error DisableSupports Rate LimitSupports Storm ControlSupports PoE ManagedLayer 3 FeaturesSupport Static routingSupport RIPSupport OSPFSupport VRRPManagementIPv4 and IPv6 dual stack managementWeb switch managementConsole/Telnet Command Line InterfaceSNMP v1 and v2c switch managementSSHv2, TLSv1.2 and SNMP v3 secure accessFirmware upload/download via HTTP/TFTPConfiguration upload / download through Web interfaceHardware reset button for system reboot or reset to factory defaultSNTP Network Time ProtocolNetwork DiagnosticLink Layer Discovery Protocol (LLDP) Protocol and LLDP-MED
Features
Layer 3 Advanced Routing
The IES7521-24PGE4TF-AC supports Layer 3 protocols like OSPF, RIP, and static routing, enabling efficient communication between different subnets and VLANs. This capability reduces network congestion by offloading traffic from central routers, ensuring faster data processing. Ideal for industrial environments, it supports seamless interconnectivity across geographically distributed networks, providing a scalable solution for expanding systems in smart cities, factories, and transport hubs.

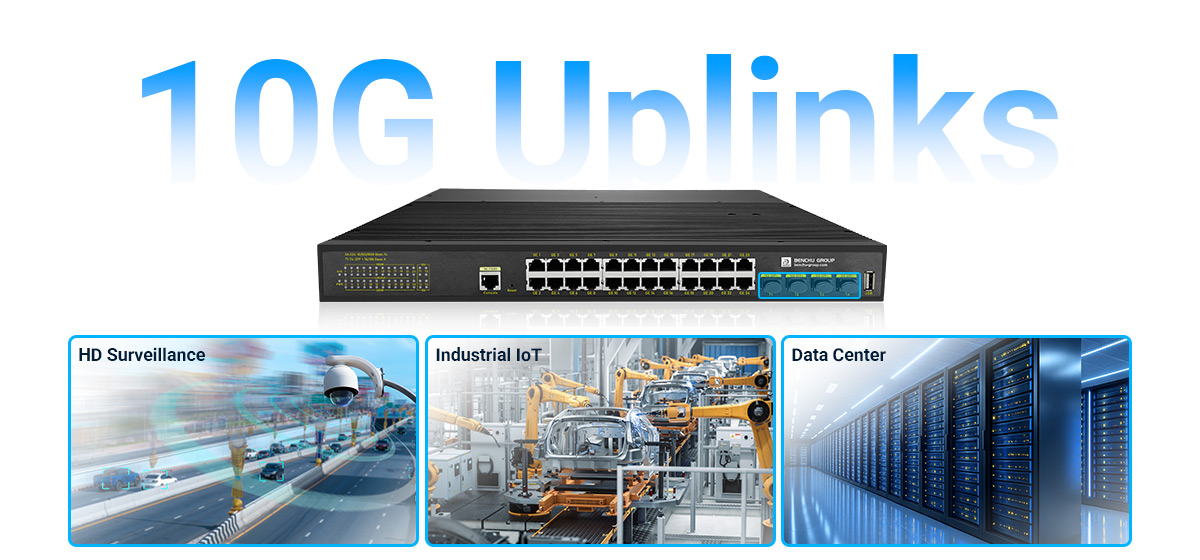

High-Performance 10G SFP+ Uplinks
Equipped with 4 10G SFP+ uplinks, this 24 port industrial PoE Switch ensures ultra-fast connectivity for core network infrastructure, long-distance fiber links, and high-bandwidth applications like data centers. These uplinks deliver the speed and reliability required for HD surveillance, industrial IoT, and real-time monitoring systems. The flexibility of fiber and copper options supports diverse deployment scenarios, making it future-proof for expanding network needs.
Intelligent PoE Power Delivery
The IES7521-24PGE4TF-AC supports IEEE 802.3af/at PoE standards, delivering up to 30W per port with a high PoE budget. Administrators can prioritize power allocation for critical devices like PTZ cameras and wireless access points. Advanced management features such as PoE scheduling and real-time monitoring ensure efficient energy use, reducing operational costs while ensuring uninterrupted device performance in mission-critical environments.

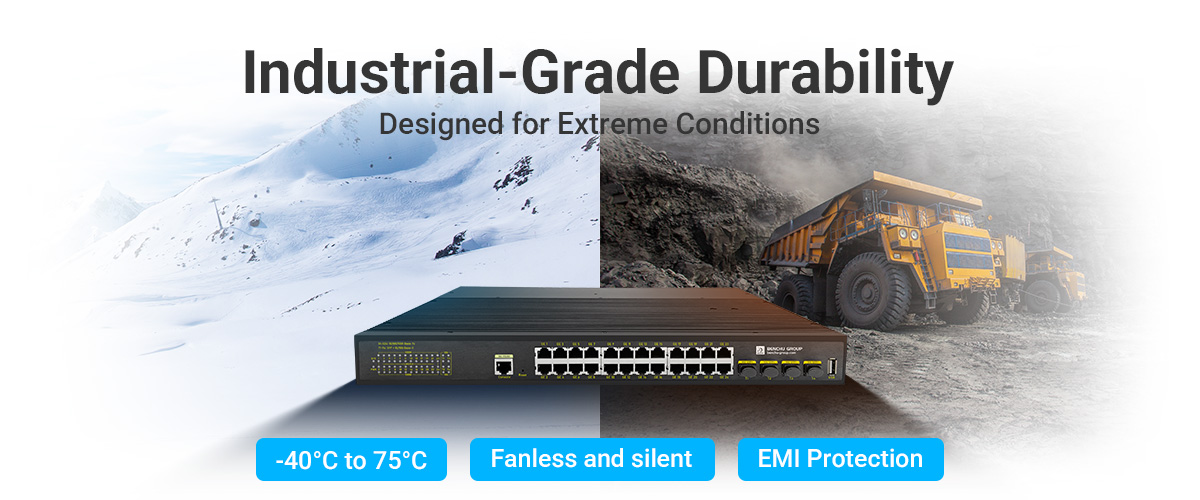

Industrial-Grade Durability
Designed for extreme conditions, this Managed 24 port industrial PoE switch operates in a wide temperature range (-40°C to +75°C) and resists shock, vibration, and electromagnetic interference. Its rugged metal housing and fanless design enhance reliability in harsh industrial and outdoor environments. This durability ensures consistent performance, making it suitable for applications like manufacturing, mining, and transportation systems.
Robust Network Security
This managed 24 port industrial PoE switch integrates enterprise-grade security features, including 802.1X authentication, Access Control Lists (ACLs), and secure management interfaces. These tools protect sensitive data and prevent unauthorized access to the network. For industrial networks handling critical operations, these features provide peace of mind by safeguarding against cyber threats and maintaining system integrity.

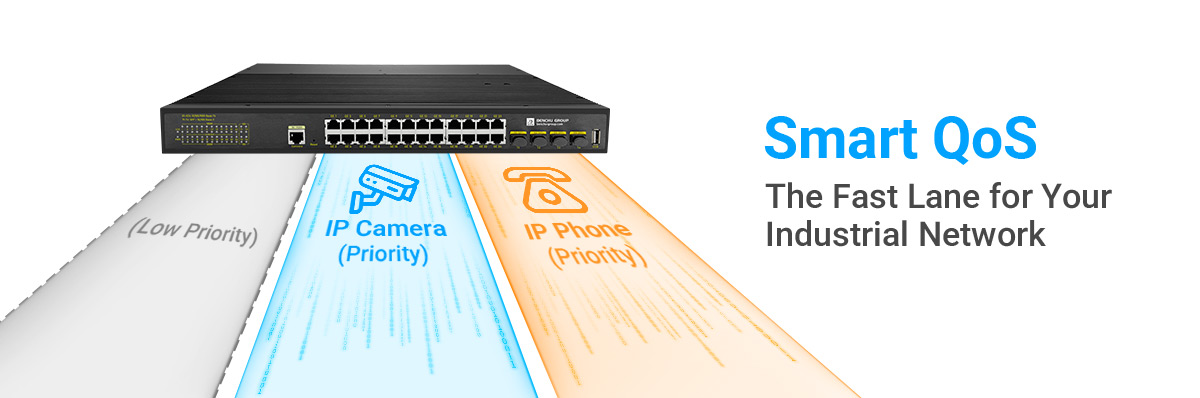

Traffic Optimization with QoS
Quality of Service (QoS) allows administrators to prioritize traffic based on application type, ensuring consistent performance for latency-sensitive tasks like VoIP and video surveillance. Advanced features like traffic shaping and bandwidth control enhance network efficiency by preventing bottlenecks. This functionality is critical for maintaining smooth operations in industrial environments with mixed traffic loads.
Simplified Network Management
This 24 port industrial PoE switch offers multiple management options, including web-based GUI, CLI, and SNMP, allowing users to monitor, configure, and troubleshoot the network with ease. Centralized management capabilities, such as real-time diagnostics and remote updates, simplify the operation of large-scale deployments. This reduces maintenance complexity, improving operational efficiency and ensuring maximum uptime for critical systems.
Connectivity Solutions
Layer 3 Managed 24 Port Gigabit PoE Industrial Switch with 4-10G SFP+ Uplink Connection Solution
Layer 3 Managed 24 Port Gigabit PoE Industrial Switch with 4-10G SFP+ Uplink Ring Network Connection Solution
Specification
المواصفات الفنية :
IE7521-24PGE4TF-AC10M / 100M / 1G RJ45 المنافذ النحاسية :
24منافذ 1G / 2.5G / 10G SFP + (ألياف) :
4منافذ PoE / PoE + :
24منفذ وحدة التحكم (للتكوين) :
Yesمنفذ يو اس بي :
Yes (for firmware and config upload/ download)الطاقة عبر الإيثرنت :
*بو القياسية :
IEEE 802.3at Power over Ethernet Plus/PSE; Backward compatible with IEEE 802.3af Power over Ethernetنوع امدادات الطاقة بو :
End-span: 1/2 (+), 3/6 (-)بو انتاج الطاقة :
Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af); Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)مواصفات الأداء :
*ذاكرة التخزين المؤقت للحزم :
12 Mbأوضاع إعادة التوجيه :
Store-and-forwardعرض النطاق الترددي :
128 Gbpsمعدل إعادة توجيه الحزمة :
96Mpps (64 byte packet size)حجم قاعدة بيانات عنوان MAC :
16K (48-bit MAC ad-dresses)دعم الإطار الجامبو :
12Kخدمات L2 - شبكات VLAN :
*وضع علامات على الشبكة المحلية الظاهرية (VLAN) وفقا لمعيار IEEE 802.1Q :
Yesوضع علامات QinQ VLAN :
Yesشبكات VLAN القائمة على بروتوكول الإنترنت :
Yesشبكات VLAN المستندة إلى MAC :
Yesشبكة محلية ظاهرية (VLAN) قائمة على البروتوكول :
Yesشبكة محلية ظاهرية صوتية :
Yesتعيين الشبكة المحلية الظاهرية (VLAN) :
Yesخدمات L2 - التوافر :
*السيطرة على العاصفة :
Yes (Broadcast, multicast, unknown unicast)المعيار IEEE 802.3ad - لوائح التأخر (LACP) :
Yesالمعيار IEEE 802.3x :
Yesحلقة (ERPS ، يتوافق مع G.8032) :
Yes, Recovery time < 50msIEEE 802.1D بروتوكول شجرة الامتداد :
YesIEEE 802.1w بروتوكول شجرة الامتداد السريع :
YesIEEE 802.1s بروتوكول شجرة الامتداد المتعددة :
Yesالطبقة 2 مرحل DHCP :
Yesخدمات L2 - تصفية البث المتعدد :
Yesتطفل IGMP (الإصدارات 1 والإصدار 2 والإصدار 3) :
Yesدعم التطفل MLD (v1 و v2) :
YesIGMP التطفل الاستعلام (v2) :
YesMLD التطفل الاستعلام (v1) :
Yesتسجيل شبكة محلية ظاهرية متعددة البث (MVR) :
Yesخدمات L3 - DHCP :
*عميل DHCP :
Yesتطفل DHCP :
Yesخادم DHCP :
Yesخدمات L3 - التوجيه :
*توجيه IPv4 الثابت :
100توجيه IPv6 الثابت :
100توجيه الشبكة المحلية الظاهرية (VLAN) :
YesRIP V1 / V2 :
YesOSPF V2 :
Yesعدد واجهات IP VLAN :
Yesتوجيه السياسة :
YesVRRP :
Yesتجميع الارتباطات :
*دليل LAG :
Yes# من LAGs / # من الأعضاء في كل LAG :
8 LAGs with max 8 members in each LAGخدمات مراقبة واكتشاف الشبكة :
*802.1ab LLDP :
Yesسنمب :
v1, v2c, v3مجموعة RMON 1،2،3،9 :
Yesأمن الشبكات :
Yesالمعيار IEEE 802.1x :
Yesمحاسبة نصف قطرها :
Yesقوائم التحكم في الوصول (ACL) :
Yesقوائم التحكم في الوصول المستندة إلى بروتوكول الإنترنت (IPv4 وIPv6) :
L2 / L3 / L4قوائم التحكم في الوصول المستندة إلى MAC :
Yesقوائم التحكم في الوصول المستندة إلى TCP/UDP :
Yesالتحكم في إدخالات MAC # الثابتة :
48الأمان المستند إلى المنفذ بواسطة عناوين MAC المقفلة :
Yesفحص ARP الديناميكي :
Yesحماية DoS :
Yesمنع هجمات DoS :
Yesحماية من عاصفة الشبكة ، DoS :
Yesجودة الخدمة (QoS) :
*تحديد المعدل المستند إلى المنفذ :
Yes ingress and egressجودة الخدمة القائمة على المنفذ :
Yesدعم حقول IPv6 :
YesDiffServ QoS :
Yes ingressIEEE 802.1p COS :
Yesوجهة MAC و IP :
YesIPv4 و v6 DSCP :
Yesالمستندة إلى TCP/UDP :
Yesجولة روبن المرجحة (WRR) :
Yesتقنية قائمة انتظار الأولوية الصارمة :
Yesبروتوكولات شبكة IEEE :
*البروتوكولات :
• IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3ad Trunking (LACP) • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LXالبروتوكولات 2 :
• IEEE 802.3x Full-Duplex Flow Control • IEEE 802.1Q VLAN Tagging • IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED) • IEEE 802.1p Class of Service • IEEE 802.1D (STP) • IEEE 802.1s (MSTP) • IEEE 802.1w (RSTP) • ITU-TG.8032 (ERPS)الإدارة والمراقبة واستكشاف الأخطاء وإصلاحها :
*إدارة كلمات المرور :
Yesالتحكم في الوصول عبر RADIUS و TACACS + :
Yesإدارة IPv6 :
YesSNMP v1 / v2c / v3 :
Yesانعكاس المنفذ :
Yes ingress and egressانعكاس متعدد المنافذ إلى واحد :
28أداة اختبار الكابلات :
Yesالوصول المستند إلى الويب TLS/HTTPS (الإصدار) :
Yes (v1.2)نقل الملفات (التحميلات والتنزيلات) :
TFTP / HTTPتحميل / تنزيل HTTP (البرنامج الثابت) :
Yesسجل النظام (RFC 3164) :
Yesالمصابيح :
Yesلكل منفذ :
Speed, Link, Activity; PoE in different modeلكل جهاز :
Powerالمواصفات المادية :
*الأبعاد (العرض * العمق * الارتفاع) :
440 x 290 x 48 mm (17.32 x 11.42 x 1.89 in)ثقل :
5.5 kg (12.12 lb)متطلبات الطاقة :
AC100~260V 50/60Hz, redundant power with reverse polarity protectionاستهلاك الطاقة :
500W (when all ports used, line-rate traffic and max PoE)أقصى قوة :
24W (worst case, all ports used, full PoE, line-rate traffic) (Watts)استهلاك الطاقة في وضع الخمول :
18W (all ports link-down standby) (Watts)إيثرنت موفر للطاقة (EEE) :
Yes (deactivated by default)مروحة :
Fanlessالمواصفات البيئية :
*درجة حرارة التشغيل :
-30° to 75°C (-22° to 167°F)رطوبة التشغيل :
95% maximum relative humidity (RH), non-condensingارتفاع التشغيل :
10,000 ft (3,000 m) maximumدرجة حرارة التخزين :
-40° to 85°C (-40° to 185°F)رطوبة التخزين (نسبي) :
95% maximum relative humidity, non-condensingارتفاع التخزين :
10,000 ft (3,000 m) maximumالمعيار التنفيذي والحماية :
*الحماية من الصواعق :
*IEC61000-4-3 (RS) :
10V/m (80~1000MHz)FCC الجزء 15/CISPR22 (EN55022) :
Class BIEC61000-6-2 :
Common Industrial StandardIEC61000-4-9 (مجال مغناطيسي نابض) :
1000A/mIEC61000-4-10 (تذبذب مخمد) :
30A/m, 1MHzIEC61000-4-12 / 18 (موجة الصدمة) :
CM 2.5kV, DM 1kVIEC61000-4-4 (EFT) :
Power cable:±4kV, Data cable: ±2kVIEC61000-4-16 (إرسال الوضع المشترك) :
30V, 300V, 1sIEC61000-4-2 (ESD) :
±8kV contact discharge, ±15kV air dischargeIEC61000-4-6 (إرسال التردد اللاسلكي) :
10V(150kHz~80MHz)IEC61000-4-8 :
100A/m, 1000A/m, 1s-3sIEC61000-4-5 (زيادة): كابل الطاقة :
CM±4kV/ DM±2kV, Data cable: ±4kVالخواص الميكانيكية :
*IEC60068-2-6 :
Anti VibrationIEC60068-2-32 :
Free FallIEC60068-2-27 :
Anti Shockالانبعاثات الكهرومغناطيسية والمناعة :
*الشهادات :
CE mark, commercial; FCC Part 15 Class A, VCCI Class A; Class A EN 55022 (CISPR 22) Class A; Class A C-Tick; EN 55024; CCC; 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A; ANSI C63.4:2014; IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013أمان :
*شهادات السلامة :
CB mark, commercial; CSA certified (CSA 22.2 #950); UL listed (UL 1950)/cUL IEC 950/EN 60950; EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ;(ed.2)+A1:2009+A2:2013; AN/NZS 60950.1:2015; CCC (China Compulsory Certificate)الضمان والدعم :
*الضمان المحدود للأجهزة :
Limited Lifetime*الدعم الفني عبر الهاتف والبريد الإلكتروني* :
Limited Lifetime*24x7 الدردشة عبر الإنترنت الدعم الفني :
Limited Lifetime*محتويات العبوة :
*جميع الموديلات :
Smart Industrial Switch ; Brackets and screws for DIN-Rail mounting, which are already installed in the switch; Rubber protection caps, which are already installed in the SFP sockets Installation guideنوع العمل :
Industrialباندريدث :
1G+10Gالمزيد من الفلاتر :
L3 Managed
Questions & Answers
1. What is the benefit of the 24 PoE+ ports on this 24-port gigabit industrial PoE switch?
The 24 PoE+ ports deliver power and data over Ethernet, eliminating the need for separate power supplies. They provide up to 30W per port, making it ideal for powering devices like IP cameras, wireless access points, and VoIP phones in industrial environments.
2. How does the 10G SFP+ uplink enhance performance?
The 4 10G SFP+ uplink ports ensure high-speed, low-latency connections, supporting large data transfers and long-distance communication. This enables smooth, high-bandwidth connections to core networks, servers, and remote sites, improving overall network efficiency.
3. Is this 24-port gigabit industrial PoE switch suitable for outdoor and harsh environments?
Yes, the IES7521-24PGE4TF-AC is built to withstand extreme temperatures and harsh conditions. Its rugged design, industrial-grade housing, and reliable performance make it ideal for deployment in outdoor settings, smart cities, transportation systems, and industrial automation.
4. What Layer 2/3 features are supported by this 24-port gigabit industrial PoE switch?
This switch supports advanced Layer 2 features like VLAN, QoS, and IGMP snooping, as well as Layer 3 routing protocols like RIP, OSPF, and VRRP. These features optimize network performance, enhance security, and enable efficient traffic management across large networks.
5. How does the IES7521-24PGE4TF-AC ensure network scalability?
With its 24 PoE+ ports, 10G uplinks, and advanced Layer 3 capabilities, this switch allows for seamless expansion and future-proofing of network infrastructures. It offers high bandwidth, efficient traffic management, and reliable performance, supporting growing industrial networks.
