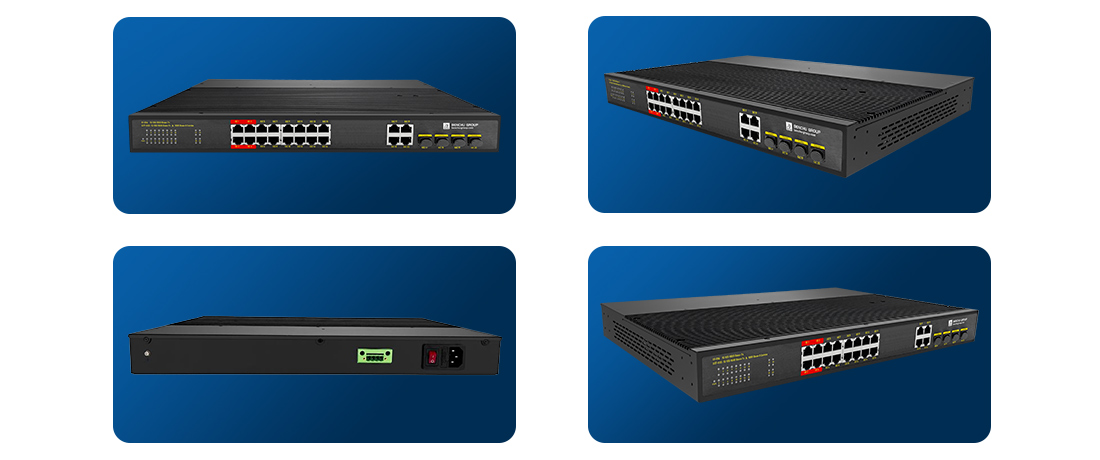

Industrial Networking Evolved: A Deep Dive into the IES7221-16PGE4GC-4BT-AC High-Power PoE++ Switch

For network infrastructure researchers and industrial system architects, the release of a new switch is rarely just about port counts. It is about capability under stress, scalability in harsh environments, and the intelligent distribution of power. The IES7221-16PGE4GC-4BT-AC enters this space as a noteworthy contender, combining high-wattage Power over Ethernet with a ruggedized form factor designed for the edge of the network. This 16-port Gigabit Industrial PoE++ Switch offers a nuanced specification set that addresses the growing demands of smart city infrastructure, advanced surveillance, and industrial IoT deployments where reliability is non-negotiable.

From a technical specifications standpoint, the device distinguishes itself through its hybrid power delivery architecture. It features four ports (1-4) compliant with IEEE 802.3bt, delivering up to 90 watts per port—sufficient to power high-consumption devices such as PTZ cameras with integrated heaters, LED digital signage, or thin clients. Complementing these are twelve additional ports (5-16) supporting PoE+ with up to 30 watts each. This tiered approach allows network designers to allocate high power budgets to critical endpoints without oversaturating the infrastructure. With a total Power Budget of 500 watts, this Industrial PoE++ Switch ensures that even under full load, connected devices maintain operational stability without requiring external power sources.

Beyond power, the switch addresses the industrial need for flexible topology and high-speed backhaul. The inclusion of four Gigabit RJ45/SFP combo uplink ports is a critical feature for researchers evaluating long-term scalability. This configuration allows for high-speed fiber connectivity over significant distances, mitigating the copper limitations often found in factory floors or sprawling outdoor deployments. The unit supports a Backplane Bandwidth of 128Gbps and a packet forwarding rate of 35.72Mpps, ensuring that the data plane remains non-blocking even when handling high-definition video streams or real-time sensor data. This makes the device particularly suitable for environments where latency and jitter must be minimized.

For those of us focused on hardware resilience, the IES7221-16PGE4GC-4BT-AC demonstrates a clear commitment to environmental endurance. Its IP40 Industrial Design features a high-strength aluminum housing that provides robust protection against dust and physical impact while remaining lightweight for easier installation via Din Rail mounting. The operational parameters are equally impressive, with a tested operating temperature range spanning from -40 to 85 degrees Celsius. Such thermal tolerance is essential for deployments in unregulated environments, such as roadside cabinets or outdoor enclosures. Additionally, the switch incorporates robust electrical safeguards, including contact discharge protection of ±8KV DC and air discharge of ±15KV DC for Ethernet ESD protection, ensuring hardware longevity in electrically noisy environments.

Operational safety and network uptime are further enhanced by the device’s power design and protective features. The inclusion of dual power inputs allows for redundant power configurations, a critical requirement for mission-critical applications where power supply disruptions are not an option. This redundancy ensures continuous operation, protecting sensitive industrial processes from sudden shutdowns. Furthermore, the switch integrates 8KV Lightning Protection, a feature that is often overlooked but vital for perimeter security networks or remote sites prone to electrical surges. By adhering to stringent industry safety standards, the switch provides a level of resilience that reduces the total cost of ownership by minimizing maintenance cycles and equipment replacement.

In conclusion, the IES7221-16PGE4GC-4BT-AC represents a well-considered solution for the modern industrial network edge. It successfully balances high-density PoE delivery with the rugged reliability required for extreme environments. By leveraging a combination of IEEE 802.3bt high-power ports, flexible fiber uplinks, and a substantial total power budget, this switch offers network architects a dependable foundation for deploying next-generation IoT and surveillance infrastructures. For researchers and engineers looking to standardize hardware that simplifies installation while maximizing uptime, this unit provides a compelling blend of performance and durability.
