Deploying 5-Port Industrial PoE Passthrough Switches for Remote Surveillance, Smart Factories, and Edge IoT Applications
Category: Industrial IoT & Network Infrastructure Author: BENCHU GROUP Research & Development Engineering Division
Quick Answer:
A 5-port industrial PoE passthrough switch is designed to extend both Gigabit data connectivity and PoE power to remote edge locations where local AC infrastructure is unavailable or costly to install. By receiving up to 90W IEEE 802.3bt Type 4 PoE++ power through a single Ethernet uplink and providing multiple downstream PoE+ ports, this compact industrial solution enables reliable deployment of IP cameras, smart factory terminals, wireless access points, and edge IoT devices in harsh environments.
1 Why Use PoE Passthrough Switches for Remote Edge Deployment?
Conventional edge network expansion often requires additional AC power infrastructure or separate network cabling from central control locations. Integrating an IEEE 802.3bt PoE-powered passthrough switch addresses these deployment challenges through two key advantages:
1. Elimination of Local AC Infrastructure at Edge Sites: Powered entirely through incoming IEEE 802.3bt PoE over Ethernet cabling, the switch removes the need for additional AC outlets, local power cabinets, and outdoor AC-to-DC conversion equipment at remote installation points. This reduces infrastructure costs and simplifies deployment in difficult-to-access locations.
2. Extended Network Reach Through Inline Switching: Acting as an active Gigabit PoE passthrough device, the switch regenerates Ethernet connectivity beyond the traditional 100-meter cable limitation by creating a new network segment. It enables multiple remote field devices to connect through a consolidated uplink while maintaining reliable data transmission.
2 High-Density Field Deployments

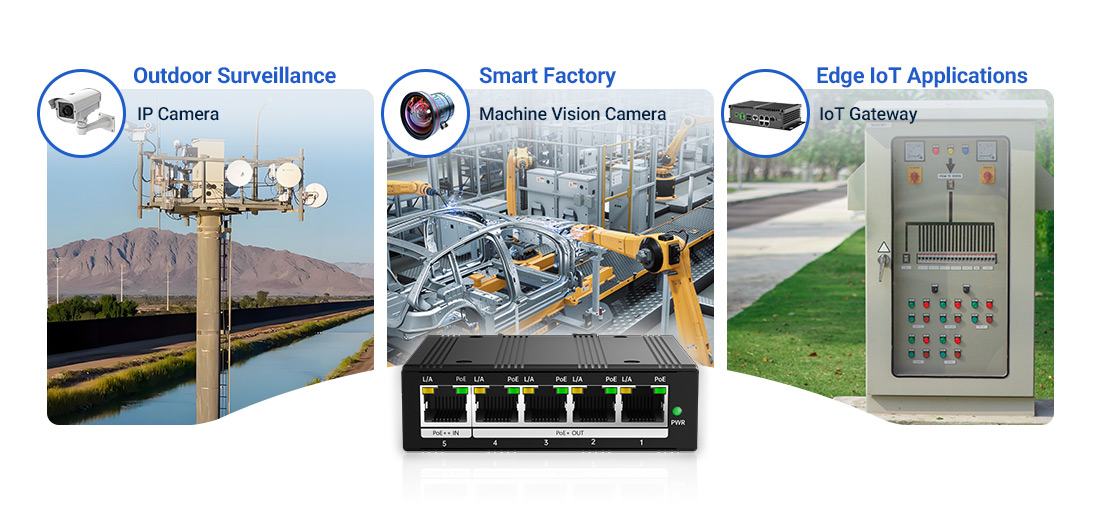

A single high-power uplink transforms isolated edge nodes into integrated, high-bandwidth communication hubs. Field engineering implementations target three specific industrial environments:
A. Outdoor Surveillance: A single outdoor industrial PoE passthrough switch installed on a perimeter tower can power one PoE+ PTZ camera and three fixed IR cameras simultaneously. By receiving high-power PoE++ input and redistributing PoE power locally, the system maintains stable power delivery during peak loads such as nighttime IR illumination.
B. Smart Factories: Overhead cable tray deployments can connect industrial machine vision cameras, Wi-Fi 6 access points, and PLC monitoring terminals near production lines. By delivering power and data through Ethernet, the solution reduces additional power cabling requirements around distributed edge devices and simplifies factory network expansion.
C. Edge IoT Applications: The switch consolidates municipal environmental sensors, LoRaWAN gateways, and digital LED displays inside compact outdoor control cabinets. Its hardened industrial design supports reliable 24/7 connectivity in wide-temperature environments and demanding edge locations.
3 IEEE 802.3bt Power Negotiation & Voltage Drop Analysis
The switch executes an active hardware classification handshake with an upstream IEEE 802.3bt Type 3 (60W) or Type 4 (90W) midspan/switch across all 4 conductor pairs. Internal DC-to-DC conversion circuits isolate incoming nominal 50V–57V DC lines and allocate power according to the following matrix:
Electrical Performance & Hardware Budget Metrics
Power Input Profile (PD)
IEEE 802.3bt Type 4 (90W input max) or 802.3bt Type 3 (60W input max) over 4-pair Cat6 balanced copper cabling.
Available Output Budget (PSE)
Up to 71W total budget for 4 downstream ports under 90W input; supports max 30W (IEEE 802.3at Class 4) or 15.4W (IEEE 802.3af Class 3) per port.
Transmission Architecture
5-Port 10/100/1000Base-T Non-Blocking Store-and-Forward switching with 10Gbps backplane bandwidth and 2K MAC address table.
Industrial Immunity Standards
IP40 hardened aluminum enclosure, -40°C to +75°C operational range, 6kV surge protection (IEC 61000-4-5), and ESD Level 4 compliance.

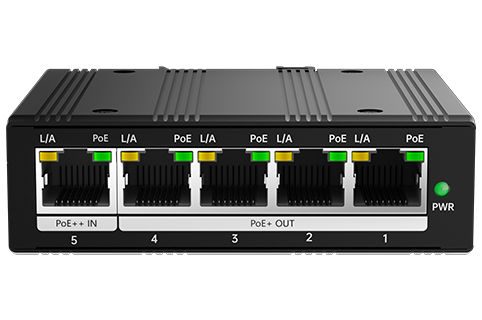

Featured Hardware: 5-Port Hardened Industrial 90W PoE Passthrough Hub
HARDWARE SPECIFICATION
IES7211-EX04G-BT90
5-Port Industrial Gigabit PoE Passthrough Switch (90W Input to 4× 30W Outputs)
- 90W High-Power Uplink: 1× IEEE 802.3bt Class 8 Input Port (No Local AC Power Required)
- 4× 30W PoE+ Outputs: Compliant with IEEE 802.3af/at (Delivering up to 30W per port)
- Ruggedization: Hardened Metal Housing, -40°C to 75°C Range, 6KV Lightning Protection
- Form Factor: Ultra-Compact DIN-Rail Mounting Design for Weatherproof Outdoor Enclosures
📁 Deployment: Perimeter IP Surveillance, Outdoor Wi-Fi Access Points & Factory IoT Sensor Grids
GET DATASHEET & PROJECT QUOTE →
4 Engineering Best Practices
To maximize long-term deployment reliability and minimize field maintenance requirements, engineers should follow three key system integration guidelines:
1. Cable Selection (Conductor Gauge Requirements): Use 23AWG 100% solid copper Cat6/Cat6A Ethernet cables for high-power PoE deployments. Avoid Copper-Clad Aluminum (CCA) cables, which introduce higher DC resistance, increased voltage drop, and unnecessary power loss during high-power PoE transmission.
2. Distance Planning (Inline Extension Architecture): Deploy the PoE passthrough switch as an intermediate network point to overcome the traditional 100-meter Ethernet segment limitation. By regenerating Gigabit Ethernet connectivity, the architecture enables longer-distance remote device deployment while maintaining reliable data transmission.
3. Power Budget Rules (Peak Load Management): Calculate both continuous operating power and startup peak demand for all downstream devices. Maintain at least a 10–20% power margin below the available PoE budget to account for conversion losses, temperature variations, and unexpected load fluctuations.
FAQ (Frequently Asked Questions)
Q: Can a PoE passthrough switch be installed in outdoor surveillance poles or industrial control cabinets?
A: Yes. Industrial PoE passthrough switches are designed for distributed edge deployments where space, power availability, and environmental conditions are challenging. With DIN-rail mounting, fanless construction, wide temperature support, and surge protection, they can be integrated into outdoor enclosures, surveillance poles, factory cabinets, and remote IoT control points.
Q: Does a 5-port industrial poe passthrough switch introduce latency into gigabit video streams?
A: No. The integrated Gigabit Layer 2 switching architecture forwards Ethernet traffic at wire speed with minimal processing delay. It supports full-duplex Gigabit communication across connected ports, making it suitable for IP video surveillance, industrial monitoring, and edge networking applications.
Optimize Your Edge Network Topology
Eliminate auxiliary power wiring and reduce field installation costs. Contact the BENCHU GROUP engineering team to request full datasheets, voltage drop calculators, or enterprise volume pricing.
REQUEST DATASHEET & TECHNICAL QUOTE →
