4 Port Gigabit Unmanaged PoE++ Switch with 1 Gigabit RJ45 and 1 Gigabit SFP Uplink, SP5200-4PGE1GE1GF-4BT

4 Port Gigabit Unmanaged PoE++ Switch
4 Port Gigabit PoE++ Switch
4 Port Gigabit 802.3BT PoE++ Switch
4 Port Gigabit 802.3BT PoE++ Switch with SFP

4 Port Gigabit Unmanaged PoE++ Switch with 1 Gigabit RJ45 and 1 Gigabit SFP Uplink, SP5200-4PGE1GE1GF-4BT

استعلام

Designed for PTZ Camera / WIFI-6 Wireless Access Point / IP Sperker

Product Highlights
    • 4-10/100/1000Mbps RJ45 ports with PoE++
    • 1-10/100/1000Mbps RJ45 ports for uplink
    • 1-1.25Gbps mini-GBIC SFP interface for extend network
    • Complies with IEEE 802.3af/at/bt Power over Ethernet
    • Supports PoE power up to 150 watts for 4 PoE port
    • Supports contact discharge of ±4KV DC and air discharge of ±6KV
    • Backplane bandwidth 12Gbps，Packet forwarding rate 8.93Mpps，MAC address 8k
    • Wall-Mount size, Internal AC power supply

4 port gigabit poe switch authentication

Overview



SP5200-4PGE1GE1GF-4BT, 4 Port Gigabit Unmanaged PoE++ Switch,with 1-1Gb RJ45, with 1-1Gb SFP，4 PoE++ Ports, 150W Power budget，Fanless , Wall-Mount

The SP5200-4PGE1GE1GF-4BT is a powerful, energy-efficient unmanaged PoE++ switch that combines high-speed data transfer with exceptional power delivery. Equipped with 4 PoE++ ports, it provides up to 90W per port, with a total power budget of either 150W, making it ideal for powering high-demand devices such as IP cameras, wireless access points, and VoIP phones.



This switch features 1 Gigabit RJ45 port and 1 Gigabit SFP port for flexible network connectivity, enabling both copper and fiber connections for diverse network setups. The fanless design ensures silent operation, making it suitable for noise-sensitive environments like offices, retail spaces, or surveillance areas.



Designed for easy installation, the SP5200-4PGE1GE1GF-4BT is wall-mountable, offering a space-saving solution for tight or crowded installations. As an unmanaged switch, it provides hassle-free, plug-and-play operation, reducing setup time and complexity for users.



Perfect for small to medium-sized networks, this PoE++ switch offers unmatched reliability and performance for users who need to streamline their installations without compromising on quality or functionality. It’s the ideal solution for creating efficient, power-driven network environments in various commercial and industrial settings.



  • Physical Port
    4-10/100/1000Mbps Gigabit Ethernet ports with PoE++
    1-10/100/1000Mbps Gigabit Ethernet ports
    1-1.25Gbps mini-GBIC SFP interface

    Power over Ethernet
    4 ports supporting PoE++ to PD device (Port 1 to port 4)
    Complies with IEEE 802.3af/at/bt Power over Ethernet
    Supports PoE Power up to 90 watts for 4 PoE port  (Port 1 to port 4)
    142-watt PoE budget, 150-watt total power budget
    Auto detects powered device (PD)
    Remote power feeding up to 100m in standard mode
    Circuit protection prevents power interference between ports
  • Switching
    Solid performance with non-blocking architecture
    12Gbps Backplane bandwidth, 8.93Mpps Switch Throughput，9216 bytes Jumbo Frame
    supporting 8K MAC addresses
    Automatic address learning and address aging
    Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
    Flow control for full duplex operation and back pressure for half duplex operation
    Integrates address look-up engine, supporting 8K absolute MAC addresses
    Automatic address learning and address aging
    Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
  • Hardware
    High-strength metal casing.
    10-inch Rack-Mount, 1U height
    LED indicators for Power,PoE Working and LINK/ACT
    Fanless design, Silent Operation
    Internal AC power supply





Features

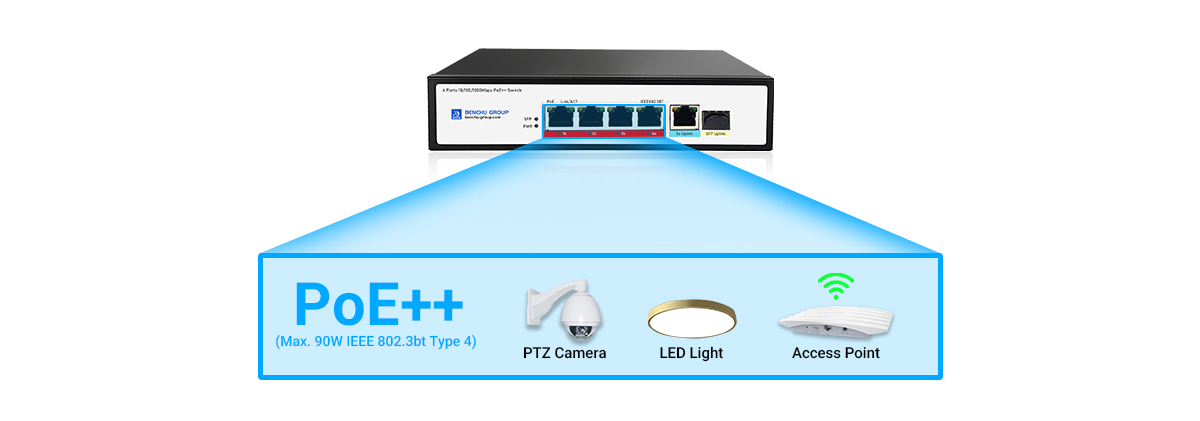

4 PoE++ Ports, Up to 90W Per Port

The SP5200-4PGE1GE1GF-4BT features four PoE++ ports, each delivering up to 90W of power. This makes it an excellent choice for devices requiring high power, such as PTZ cameras, high-performance wireless access points, or smart lighting systems. The ability to provide both power and data through a single Ethernet cable simplifies installation, eliminates the need for separate power sources, and reduces infrastructure costs, making it ideal for businesses seeking efficiency and scalability.



150W Power Budget

Offering a total power budget of either 150W, this switch can efficiently manage power distribution across all connected devices. This flexibility ensures that even high-power devices operate smoothly without overloading the system. The power budget supports reliable, uninterrupted performance in demanding applications, such as security surveillance and enterprise networking. It allows businesses to deploy a wide range of PoE-powered devices with confidence, knowing the system can handle the load.

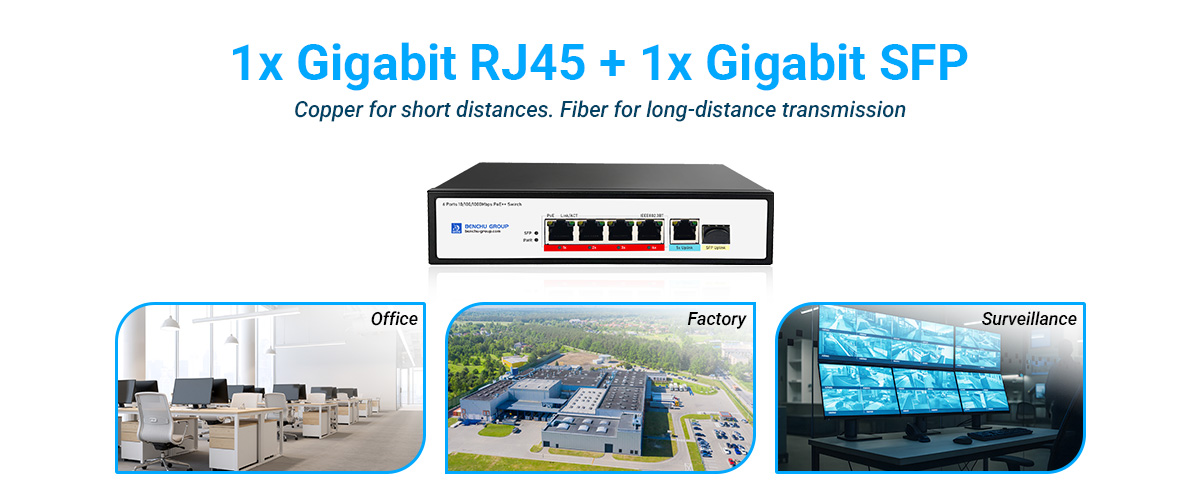

1-Gigabit RJ45 and 1-Gigabit SFP Port

With 1 RJ45 port and 1 SFP port, the SP5200-4PGE1GE1GF-4BT provides versatile connectivity for various network configurations. The RJ45 port supports high-speed copper connections for short distances, while the SFP port enables fiber connections for long-distance transmission. This flexibility makes the switch suitable for diverse environments, including offices, factories, and surveillance systems, ensuring seamless integration with existing network infrastructures.

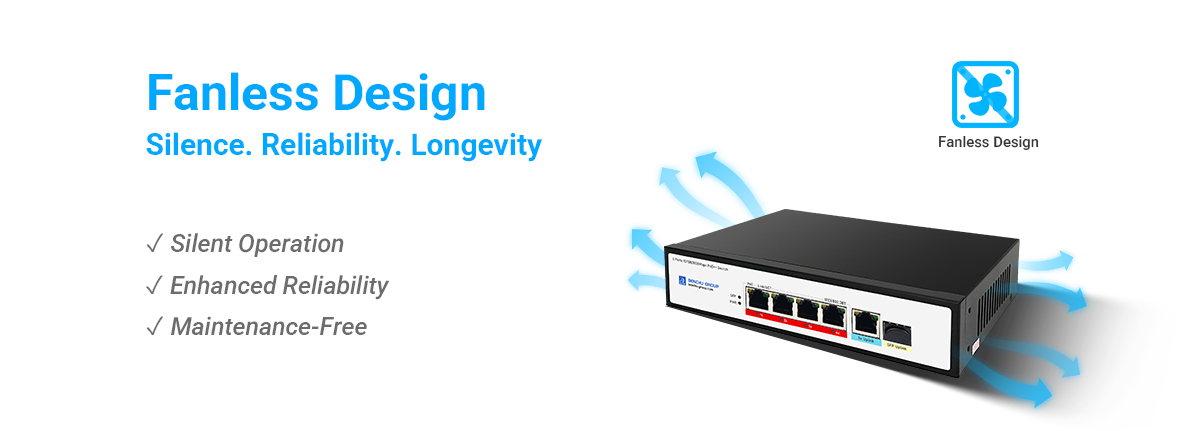

Fanless Design

The fanless design of the SP5200-4PGE1GE1GF-4BT ensures silent operation, making it ideal for noise-sensitive areas like offices, retail spaces, and residential buildings. Additionally, the absence of fans reduces mechanical wear and increases the switch's reliability and lifespan. This durable, maintenance-free design provides a stable network experience, ensuring continuous, efficient operation without the risk of overheating or fan-related failures.



Wall-Mountable Design

The compact, wall-mountable design of this PoE++ switch offers flexibility in installation. It can be easily mounted on walls or other surfaces, optimizing space in crowded areas or compact setups. This feature makes it a perfect choice for applications where desk or rack space is limited. The sturdy design ensures secure installation in diverse settings, from small offices to industrial environments, while maintaining ease of access for troubleshooting or upgrades.





Connectivity Solutions



4 port Gigabit PoE++ switch with 1 RJ45 and 1 SFP Connectivity Solution



4 port Gigabit PoE++ switch with 1 RJ45 and 1 SFP Connectivity Solution





Specification





  • المواصفات الفنية :

    SP5200-4PGE1GE1GF-4BT

  • 10M / 100M / 1G RJ45 المنافذ النحاسية :

    5

  • 1.25G SFP (الألياف) الموانئ :

    1

  • منافذ PoE / PoE + / PoE ++ / UPoE + :

    4

  • الطاقة عبر الإيثرنت :

    *

  • بو القياسية :

    IEEE 802.3bt Power over Ethernet Plus+/PSE； Backward compatible with IEEE 802.3af/at Power over Ethernet

  • نوع امدادات الطاقة بو :

    End-span: 1/2/4/5 (+), 3/6/7/8 (-)

  • بو انتاج الطاقة :

    Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)； Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at); Per port 52V DC, 1800mA. max. 90 watts (IEEE 802.3bt)

  • ميزانية الطاقة بو :

    150 Watts

  • مواصفات الأداء :

    *

  • ذاكرة التخزين المؤقت للحزم :

    1.2 Mb (Dynamically shared across only used ports)

  • أوضاع إعادة التوجيه :

    Store-and-forward

  • عرض النطاق الترددي :

    12 Gbps

  • معدل إعادة توجيه الحزمة :

    8.97Mpps (64 byte packet size)

  • حجم قاعدة بيانات عنوان MAC :

    4K (48-bit MAC ad-dresses)

  • دعم الإطار الجامبو :

    Up to 9K packet size

  • متوسط الوقت بين حالات الفشل :

    121,121 hours (MTBF) @ 25°C

  • بروتوكولات شبكة IEEE :

    *

  • البروتوكولات :

    • IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.3af PoE • IEEE 802.3at PoE+• IEEE 802.3bt PoE++ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3x Full-Duplex Flow

  • رصد :

    *

  • المصابيح :

    Yes

  • لكل منفذ :

    Speed, Link, Activity; PoE in different mode

  • لكل جهاز :

    Power

  • المواصفات المادية :

    *

  • الأبعاد (العرض * العمق * الارتفاع) :

    202x 140 x 44.5mm (7.95 x 5.51 x 1.75 in)

  • ثقل :

    1.1 kg (2.43 lb)

  • استهلاك الطاقة :

    150W (when all ports used, line-rate traffic and max PoE)

  • أقصى قوة :

    7W (worst case, all ports used, full PoE, line-rate traffic) (Watts)

  • استهلاك الطاقة في وضع الخمول :

    5W (all ports link-down standby) (Watts)

  • إيثرنت موفر للطاقة (EEE) :

    Yes (deactivated by default)

  • مروحة :

    Fanless

  • المواصفات البيئية :

    *

  • درجة حرارة التشغيل :

    -20° to 50°C (-4° to 122°F)

  • رطوبة التشغيل :

    90% maximum relative humidity (RH), non-condensing

  • ارتفاع التشغيل :

    10,000 ft (3,000 m) maximum

  • درجة حرارة التخزين :

    –20° to 70°C (– 4° to 158°F)

  • رطوبة التخزين (نسبي) :

    95% maximum relative humidity, non-condensing

  • ارتفاع التخزين :

    10,000 ft (3,000 m) maximum

  • الانبعاثات الكهرومغناطيسية والمناعة :

    *

  • الشهادات :

    CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014 IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013

  • أمان :

    *

  • شهادات السلامة :

    CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ；(ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)

  • الضمان والدعم :

    *

  • الضمان المحدود للأجهزة :

    Limited Lifetime*

  • الدعم الفني عبر الهاتف والبريد الإلكتروني* :

    Limited Lifetime*

  • 24x7 الدردشة عبر الإنترنت الدعم الفني :

    Limited Lifetime*

  • محتويات العبوة :

    *

  • جميع الموديلات :

    Smart PoE Switch； AC Power cord with C13 connector (localized to region of sale) ； Brackets and screws for rack mounting； Rubber protection caps, which are already installed in the SFP sockets Installation guide

  • نوع العمل :

    Commercial

  • باندريدث :

    1G

  • المزيد من الفلاتر :

    Unmanaged

Questions & Answers



1. What is the maximum PoE power output per port?

Each PoE++ port supports up to 90W, ideal for high-power devices like PTZ cameras or access points.



2. What is the total power budget of the SP5200-4PGE1GE1GF-4BT?

The switch offers a power budget of 150W, depending on the power adapter used.



3. Does the SP5200-4PGE1GE1GF-4BT support both copper and fiber uplinks?

Yes, it features 1 RJ45 uplink for 1Gb and 1 SFP port for 1Gb fiber connectivity.



4. Is this 4 Port Gigabit Unmanaged PoE++ Switch suitable for quiet environments?

Yes, it is fanless, making it perfect for noise-sensitive spaces like offices or meeting rooms.



5. Can this 4 Port Gigabit Unmanaged PoE++ Switch be mounted on walls or confined spaces?

Yes, the SP5200-4PGE1GE1GF-4BT is wall-mountable, designed for flexible installation in tight areas.
