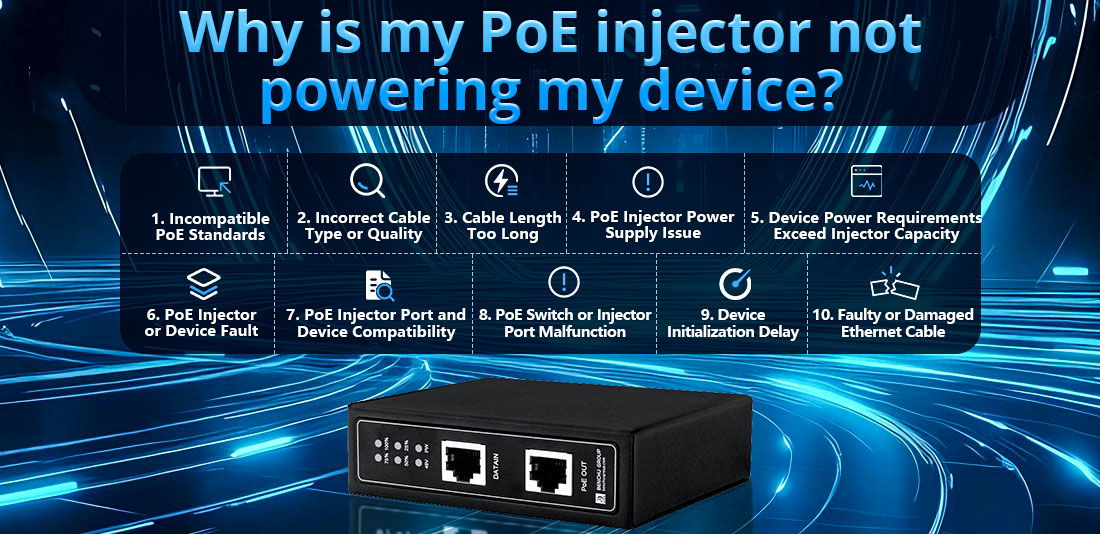

Why is my PoE injector not powering my device?

If your PoE (Power over Ethernet) injector is not powering your device, several potential issues could be causing the problem. Below is a detailed breakdown of common reasons why a PoE injector might fail to deliver power and how to troubleshoot each issue:

1. Incompatible PoE Standards

PoE technology has different power standards that provide varying amounts of power per port. If your device requires a higher power level than what your PoE injector can provide, it will not receive the power it needs. There are three main PoE standards:

--- IEEE 802.3af (PoE): Delivers up to 15.4W per port.

--- IEEE 802.3at (PoE+): Delivers up to 25.5W per port.

--- IEEE 802.3bt (PoE++ or 4PPoE): Delivers up to 60W (Type 3) or 100W (Type 4) per port.

Solution:

--- Check the power requirements of your device and ensure that the PoE injector supports the correct PoE standard. If your device requires PoE+ (25.5W), and you are using a standard PoE injector (15.4W), it won’t work. Likewise, if your device requires PoE++ (e.g., for high-power devices like PTZ cameras or access points), you'll need a PoE++ injector capable of delivering the required power.

2. Incorrect Cable Type or Quality

--- The Ethernet cable you're using plays a critical role in delivering both data and power. Using low-quality cables or those with insufficient specifications can lead to power loss or complete failure to deliver power.

--- Cat 5e cables are typically sufficient for PoE and PoE+ (up to 25.5W).

--- For PoE++ (60W or 100W), you may need Cat 6 or higher cables to handle the increased power delivery and to avoid voltage drops over long distances.

Solution:

--- Make sure you're using the correct Ethernet cable (at least Cat 5e for standard PoE or Cat 6 for PoE+ or PoE++). Additionally, check the cable length: PoE performance can degrade over long cable runs, especially for higher power levels.

3. Cable Length Too Long

Ethernet cables have a maximum transmission distance, and exceeding these limits can cause signal degradation, including a drop in the voltage supplied to the device. The standard distance for Ethernet cables is 100 meters (328 feet), but the further the distance, the more likely there will be voltage loss.

Solution:

--- Ensure the Ethernet cable is within the 100-meter limit. If you need to run cables over longer distances, consider using a PoE extender or fiber optics for greater distance coverage, especially in industrial settings.

4. PoE Injector Power Supply Issue

The PoE injector’s power supply may not be providing enough power to the injector, or it may be malfunctioning. Some injectors rely on a wall adapter or external power supply to convert AC to DC, and if the power supply is damaged or inadequate, the injector may not work.

Solution:

--- Check that the power supply of the PoE injector is properly connected and functioning. Ensure that the injector is rated for the required power output for your device and that it is receiving adequate power from the source. If possible, test the injector with a known good power supply or swap out the power supply to rule out any issues.

5. Device Power Requirements Exceed Injector Capacity

If the device you're trying to power has higher power requirements than the injector can provide, it will not function properly. For instance, some IP cameras, wireless access points, and VoIP phones may require more power than what a standard PoE injector can deliver.

Solution:

--- Verify the power consumption of the device you are trying to power and compare it with the PoE injector's specifications. If the device requires more power than the injector can supply, you’ll need to use an injector that supports a higher PoE standard, such as PoE+ or PoE++.

6. PoE Injector or Device Fault

There may be a fault in either the PoE injector or the device itself. If the injector is not functioning correctly, it will fail to provide power. Similarly, if the powered device (e.g., camera, phone, or access point) has a hardware malfunction, it may not receive or draw power from the injector.

Solution:

--- Test the injector with another device that is known to work with PoE to see if it’s delivering power.

--- Test the device with another known working PoE injector to confirm whether the issue is with the device or the injector.

--- If possible, use a multimeter or PoE tester to check if the injector is delivering power on the Ethernet cable.

7. PoE Injector Port and Device Compatibility

Not all PoE injectors are the same, and some may not be fully compatible with all devices. For example, PoE+ devices may not work with a non-PoE injector, and some injectors might have specific port configurations or wiring requirements.

Solution:

Ensure the PoE injector is designed to work with the type of device you are trying to power. Verify the pinout configuration (although most PoE devices adhere to standard pinouts, there can be exceptions in some cases).

8. PoE Switch or Injector Port Malfunction

The port on the PoE injector or the PoE switch that you are using may be defective. If the port is damaged or not properly connected, it will fail to deliver power.

Solution:

--- Try connecting the Ethernet cable to a different port on the injector, or test the injector with a different device to ensure the injector port is functioning correctly. If using a PoE switch, ensure the port is enabled for PoE and is configured to provide the required power.

9. Device Initialization Delay

Some devices, especially IP cameras, wireless access points, or other networked equipment, might require some time to initialize and detect the PoE power.

Solution:

--- Give the device a few minutes to initialize. If the device has an LED indicator, check to see if it is showing signs of power or connectivity.

10. Faulty or Damaged Ethernet Cable

A damaged Ethernet cable can prevent both data and power from being transmitted. Physical damage, poor-quality connectors, or incorrect wiring can lead to failure to deliver PoE power.

Solution:

--- Inspect the Ethernet cable for any visible signs of damage, such as kinks, cuts, or fraying. If you suspect damage, replace the cable with a known good one to test if that resolves the issue.

Conclusion

If your PoE injector is not powering your device, there are a few common reasons, including incompatibility with PoE standards, faulty cables, power supply issues, and device power requirements. Start by ensuring that the injector meets the power requirements of your device, check your cables and connectors, verify that the injector is working, and test the device with other equipment if needed. By following a methodical troubleshooting approach, you can identify and resolve the issue efficiently.
