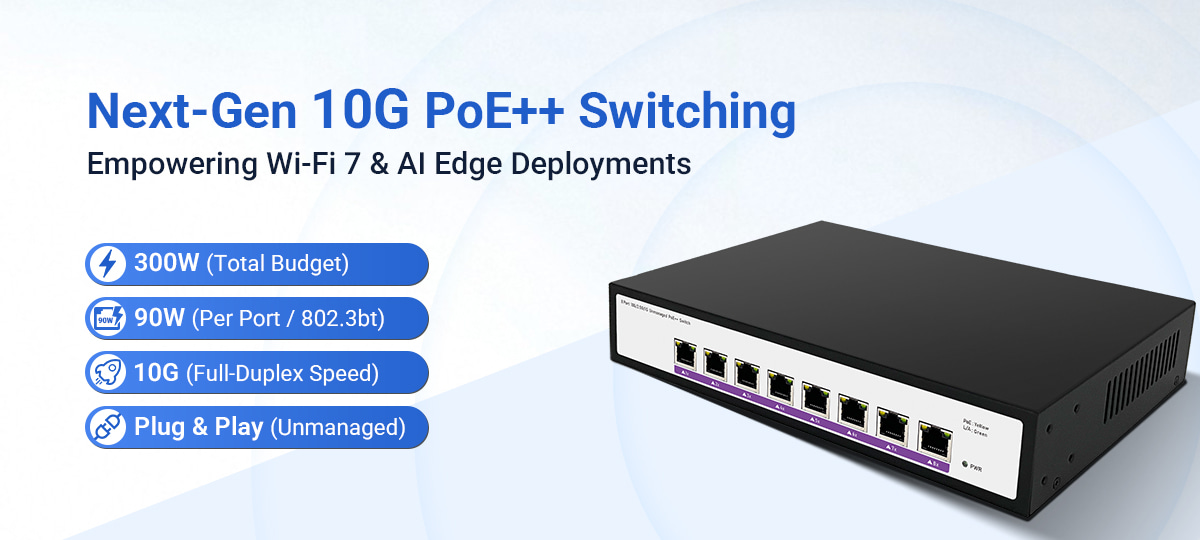

To address the compounding bandwidth and power demands of modern commercial infrastructures, Benchu Group has introduced the SP5210-8PTE-8BT. As an industrial-grade 8-port 10G PoE++ switch, it delivers a massive 300W PoE budget and complies with the IEEE 802.3bt Type 4 standard (up to 90W per port). This unmanaged hardware solution eliminates the need for expensive SFP+ modules and software configuration, providing a seamless plug-and-play backbone for Wi-Fi 7 access points, 4K/8K ProAV networks, and heavy-duty PTZ camera systems.
The rapid deployment of edge AI computing and multi-gigabit wireless standards has rendered traditional PoE+ (30W) infrastructures obsolete. Network engineers and system integrators now face a dual challenge: pushing data past the 1Gbps bottleneck while simultaneously delivering adequate electrical power to high-consumption endpoints.
Designed from the ground up for high-density environments, this unmanaged 10Gb ethernet switch directly addresses these limitations. By leveraging standard Cat6A/Cat7 copper cabling, it allows legacy network physical layers to achieve continuous 10Gbps full-duplex throughput, minimizing the capital expenditure typically associated with fiber-optic overhauls.
The internal architecture of the SP5210-8PTE-8BT is engineered for zero-latency hardware forwarding and robust power allocation. Below is a breakdown of its primary technical frameworks:
Tri-band Wi-Fi 7 radios and outdoor PTZ cameras equipped with internal heaters require substantial startup and operational power. By centralizing a robust 300W PoE budget, the switch dynamically allocates up to 90W to an individual port. This eliminates the need for decentralized, bulky power adapters near the ceiling or outdoor mounting sites.
A common failure point in unmanaged edge networks is the accidental frying of non-PoE devices (such as PCs or standard routers). Benchu Group mitigates this through smart auto-sensing logic. The internal chip executes an electrical handshake to verify standard compliance before releasing voltage, ensuring zero risk to connected legacy equipment.
High-wattage electrical transmission generates significant heat. The chassis houses an industrial-grade wide-voltage AC module (100V-240V) combined with an intelligent active cooling fan array. This guarantees sustained 160Gbps non-blocking switching capacity even under maximum load in environments ranging from -10°C to 50°C.
Feeds multi-gigabit wireless backhauls over existing copper lines while bypassing complex VLAN or IP mapping setups, facilitating instant network integration.
Accelerates ultra-HD 4K/8K editing workflows by linking all-flash NVMe NAS enclosures and workstations with zero-latency file transfers.

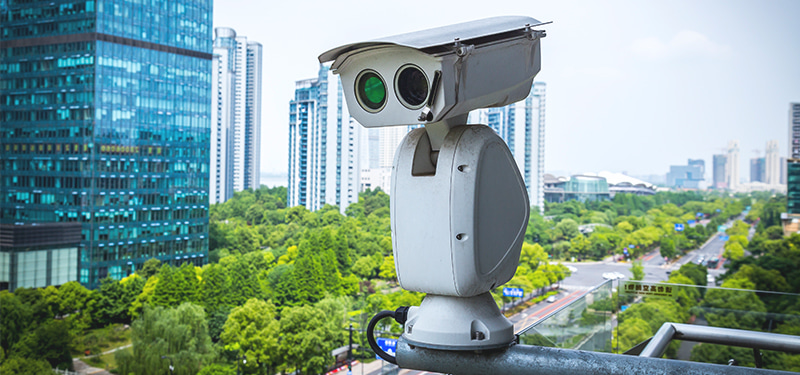

Effectively manages the intense startup power spikes required by heavy-duty laser-assisted PTZ tracking cameras and edge AI inference nodes.
Hardware reliability at the network edge is non-negotiable. As a dedicated OEM/ODM PoE switch manufacturer based in Shenzhen, China, Benchu Group provides a direct-to-factory advantage for global network brands, system integrators, and distributors.
The SP5210-8PTE-8BT features a rugged SECC galvanized steel chassis with dual-mount capabilities (desktop or 19-inch rackmount). Benchu Group offers comprehensive white-label production, allowing global partners to customize housing colors, silk-screen logos, and packaging to maintain brand consistency while expanding their high-speed enterprise portfolios.
The deployment of an 802.3bt Type 4 switch with full 10G Base-T capability represents a highly strategic investment for future-proofing commercial networking grids. By merging a 300W power pool with a pure plug-and-play architecture, Benchu Group enables project managers to drastically reduce field deployment labor while eliminating firmware crash risks. Contact Us for OEM/ODM Inquiries & Specifications: harry@benchu-group.com
