Ethernet hubs operate exclusively at OSI Layer 1 as physical-layer repeaters, creating a single shared collision domain with limited half-duplex communication efficiency[cite: 2]. In contrast, Ethernet switches operate at Layer 2 or Layer 3, using MAC address tables (CAM tables) to enable intelligent unicast forwarding, dedicated port bandwidth, and full-duplex communication through a non-blocking switching architecture[cite: 2]. For modern industrial applications such as CCTV surveillance, traffic management, and IoT deployments, rugged industrial PoE switches have become the preferred networking solution[cite: 2]. Supporting IEEE 802.3bt PoE++ power delivery up to 90W, wide operating temperatures from -40°C to +75°C, and enhanced surge protection up to 6kV, these switches provide reliable data transmission and power delivery for edge devices in demanding environments[cite: 2].
An Ethernet switch is a Layer 2 or Layer 3 networking device that analyzes Ethernet frame headers and forwards unicast traffic using MAC address tables, while an Ethernet hub is a Layer 1 physical-layer repeater that simply replicates incoming signals to all connected ports without traffic filtering[cite: 2]. The key engineering differences between these two technologies include collision domain isolation, duplex communication capability, switching capacity, and Power over Ethernet (PoE) support[cite: 2].
In modern network deployments, hubs create significant performance limitations due to shared bandwidth and collision-based communication[cite: 2]. High-bandwidth edge devices—including H.265/4K IP cameras, Edge AI systems, and real-time industrial controllers—require dedicated full-duplex switching architectures to achieve stable throughput, predictable latency, and reliable data transmission[cite: 2].

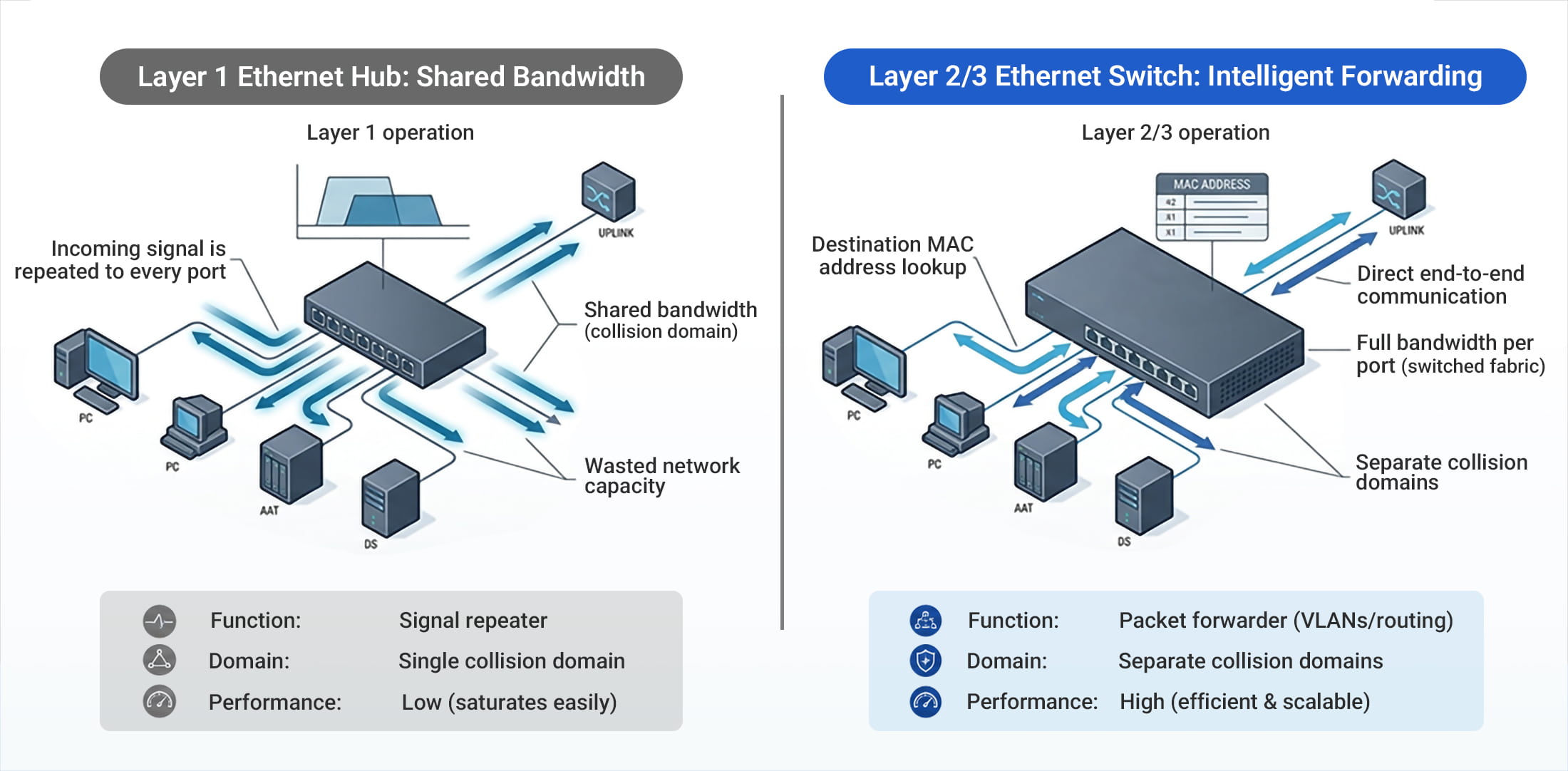

The fundamental difference between a network hub and a switch lies in how each device processes Ethernet traffic[cite: 2]. Hubs operate at Layer 1 by repeating electrical signals, while switches operate at Layer 2 or Layer 3 by intelligently forwarding data based on MAC addresses[cite: 2].
A network hub is an unmanaged Layer 1 multiport repeater that regenerates incoming electrical signals and replicates them across all connected ports simultaneously[cite: 2]. Unlike switches, hubs do not process Media Access Control (MAC) addresses, IP headers, or Ethernet frame information[cite: 2].
A network switch is a Layer 2 or Layer 3 networking device that learns endpoint MAC addresses and maps them to physical ports using an internal MAC address table (CAM table)[cite: 2]. By analyzing Ethernet frame destination information, switches perform hardware-based unicast forwarding[cite: 2].
The following technical matrix outlines functional, electrical, and environmental metrics distinguishing hubs, commercial switches, and industrial PoE hardware[cite: 2].
| Feature / Metric | Network Hub | Commercial Enterprise Switch | Industrial PoE Switch |
|---|---|---|---|
| OSI Operating Layer | Layer 1 (Physical) | Layer 2 / Layer 3 | Layer 2 / Layer 3 (Hardware Line-Rate) |
| Data Transmission | Broadcast (One-to-All) | Unicast / Multicast Targeted | Unicast / Multicast (IGMP Snooping) |
| Bandwidth Allocation | Shared across all ports | Dedicated per port | Dedicated Non-Blocking Backplane |
| Duplex & Collisions | Half-Duplex (High Collisions) | Full-Duplex (Collision-Free) | Full-Duplex (Zero Packet Loss Fabric) |
| Power Delivery (PoE) | × None Supported | Δ Basic (15.4W / 30W IEEE 802.3af/at) | ✓ High Power (30W / 60W / 90W IEEE 802.3bt) |
| Operating Temperature | 0°C to 40°C | 0°C to 45°C (Commercial Office) | ✓ -40°C to +75°C (Wide Temp Hardened) |
| Housing & Protection | Plastic Housing | Desktop / Sheet Metal Rackmount | ✓ IP40 Aluminum, DIN-Rail / Wall Mount |
| Surge Immunity | None | 1kV - 2kV Basic Surge | ✓ 6kV Surge Protection (IEC 61000-4-5) |
| Primary Applications | Obsolete / Legacy Diagnostic Labs | Enterprise Offices, SOHO Networks | Industrial CCTV, Smart Cities, Traffic, Solar IoT |
Deploying Layer 1 repeating hubs in modern network environments creates significant limitations in traffic performance, network security, and power delivery capabilities[cite: 2].
Continuous high-bandwidth traffic, including H.265/4K IP surveillance streams, quickly consumes the shared bandwidth of a hub’s collision domain[cite: 2]. Multiple simultaneous transmissions create collisions, resulting in retransmissions, reduced throughput, video freezing, and unpredictable latency[cite: 2]. Ethernet switches overcome these limitations by providing dedicated bandwidth and full-duplex communication for each connected device[cite: 2].
Because hubs replicate incoming signals across all ports without traffic filtering, any connected device can potentially observe network traffic from other endpoints[cite: 2]. Managed switches improve network security through 802.1Q VLAN segmentation, port security features, and MAC address binding, enabling controlled traffic isolation between devices and network segments[cite: 2].
Network hubs cannot provide Power over Ethernet because they lack Power Sourcing Equipment (PSE) functionality[cite: 2]. Modern outdoor IP cameras, PTZ surveillance systems, wireless access points, and IoT edge devices increasingly rely on industrial PoE switches supporting IEEE 802.3bt PoE++ technology with up to 90W power delivery over Cat6 Ethernet infrastructure[cite: 2].
Outdoor security cabinets, traffic intersections, and remote solar stations expose network equipment to environmental conditions that can accelerate hardware degradation and cause premature failures in standard commercial switches[cite: 2].
Harsh Thermal Resilience (-40°C to +75°C)Industrial switches typically use fanless aluminum alloy enclosures with passive heat dissipation, eliminating the reliability issues associated with mechanical fans in dusty environments[cite: 2]. Wide-temperature components are designed to maintain stable operation across extended temperature ranges from -40°C to +75°C[cite: 2].
Redundant Power Inputs & Heavy-Duty Surge ImmunityDual DC power inputs support redundant power architectures for improved network availability in remote and off-grid deployments[cite: 2]. Integrated surge protection circuits provide up to 6kV surge immunity tested according to IEC 61000-4-5, helping protect equipment from lightning-induced surges and electrical disturbances[cite: 2].
Flexible Form Factors: DIN-Rail IntegrationRugged DIN-rail mounting mechanics (EN 50022) allow compact installation inside space-restricted NEMA control enclosures, streamlining physical integration alongside DIN-rail power supplies and terminal blocks[cite: 2].
Engineering and procurement teams should evaluate four critical specifications when selecting Ethernet network hardware[cite: 2].
Calculate the required number of access ports for connected edge devices and consider high-bandwidth uplinks using 1G/10G SFP or SFP+ slots with pluggable optical transceivers for long-distance backbone connections[cite: 2].
Calculate the total power requirements of connected powered devices (PDs), including cable losses and additional power margin[cite: 2]. Match system requirements against IEEE 802.3af (15.4W), IEEE 802.3at (30W), or IEEE 802.3bt PoE++ (up to 90W) standards[cite: 2].
Use unmanaged switches for simple plug-and-play deployments[cite: 2]. For mission-critical industrial networks, managed switches with redundancy protocols such as ERPS (G.8032) can provide rapid ring recovery and improved network availability[cite: 2].
For brands, distributors, and system integrators requiring customized networking solutions, experienced OEM/ODM manufacturers can provide PCB modifications, custom firmware development, private labeling, wide-voltage solar inputs, and certified production testing[cite: 2].
No. Network hubs are largely obsolete in modern Ethernet deployments[cite: 2]. Their half-duplex operation, shared collision domains, and lack of PoE support have caused them to be replaced by Layer 2/3 Ethernet switches in most commercial and industrial networks[cite: 2].
No. Network hubs cannot provide Power over Ethernet (PoE) power to IP cameras or other powered devices[cite: 2]. In addition, high-bandwidth HD/4K camera streams can overwhelm a hub’s shared bandwidth, resulting in packet loss, latency, and unstable video performance[cite: 2].
A switch uses an internal MAC address table (CAM table) to forward unicast frames to the intended destination port[cite: 2]. This provides dedicated full-duplex bandwidth per port and eliminates Ethernet collisions on switched connections[cite: 2].
Industrial switches are designed for harsh environments with features such as fanless wide-temperature operation (-40°C to +75°C), rugged metal enclosures, DIN-rail mounting, redundant DC power options, and surge protection[cite: 2]. Commercial switches are primarily designed for controlled indoor environments[cite: 2].
Looking for reliable, cost-effective industrial PoE switches tailored to your specific project or brand requirements? As a specialized Ethernet hardware manufacturing facility in Shenzhen, we deliver end-to-end OEM/ODM engineering services—including custom port topologies, wide-voltage solar inputs, private label branding, and ISO9001 certified quality control with 100% burn-in testing[cite: 2].
